ABB IRB 140 6/0.8

Industrial Robot ABB IRB 140 6/0.8

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 140 6/0.8

Axes

6

Payload

6 kg

Reach

810 mm

Repeatability

0.030 mm

Weight

98 kg

Speed at rated payload

2.5 m/s

IP rating

IP67

Mounting orientation

Any angle (Floor, Inverted, Angle)

Controller

IRC5

Power supply

Supply voltage 200-600 V, 50/60 Hz

Power consumption

400 W

Tool flange

Bolt Circle Ø40 mm / Ø25 mm, 4 pcs M6

Certifications

ANSI/UL 1740, CAN/CSA Z434-14, EMC/EMI-shielded

Cleanroom class

Clean Room, class 6

Safety functions

Double circuits with supervision, emergency stops, 3-position enabling device

Communication interfaces

Field buses for I/O, sensor interfaces, remote disk access, socket messaging

Download ABB IRB 140 6/0.8 digital twin

Start for free
Introducing the Industrial Robot ABB IRB 140 6/0.8, a versatile six-axis automation solution designed for precise handling and assembly tasks. With a payload capacity of 6 kg and a reach of 810 mm, this robot offers exceptional repeatability of 0.030 mm and operates at maximum speeds of 2.5 m/s, making it ideal for high-speed applications. Equipped with an IRC5 controller and recognized for its robust IP67 rating and cleanroom class 6 compliance, the ABB IRB 140 is perfect for demanding industrial environments that require reliability and efficiency.

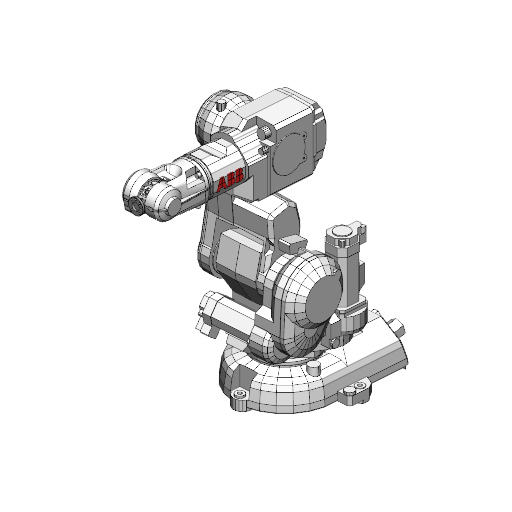

3D View

What are the technology applications of IRB 140 6/0.8?

ABB IRB 140 6/0.8 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 140 6/0.8:Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 140 6/0.8 applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can ABB IRB 140 6/0.8 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 140 6/0.8 or request a quote, please contact the manufacturer or an authorized local supplier.
