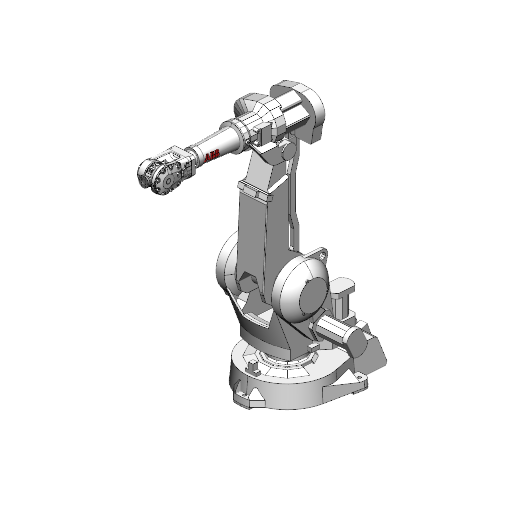

ABB IRB 2400/16

Heavy-Duty Industrial Robot ABB IRB 2400/16

Specifications

Type

Heavy-Duty Industrial Robot

Brand

ABB

Model

IRB 2400/16

Axes

7

Payload

16 kg

Reach

1550 mm

Repeatability

0.030 mm

Weight

380 kg

Speed at rated payload

Axis-4/5: 360 °/s

IP rating

IP54 standard, IP67 (Foundry / FoundryPlus / wash-down variants)

Operating temperature range

5 to 45 °C

Mounting orientation

Floor, Inverted, Wall, Ceiling (various installations including inverted mounting)

Controller

IRC5 (also variants with S4C, M2004 in earlier models)

Power supply

200-600 V AC, 50/60 Hz

Power consumption

670 W

Tool flange

ISO 50 / ISO-50 (bolt hole circle), M6 thread bolts

Certifications

EN ISO 10218-1, EN ISO 12100, EN 60204, CE

Cleanroom class

US Federal Standard 209 Class 100 / ISO 14644-1 Class 5 (for clean room and manipulator options)

Safety functions

Protective stop, Emergency stop, Electronic Position Switches (EPS), safety circuits included in controller, ability to limit axis motion ranges, safety lamp option

Communication interfaces

RS-232, RS-422, Extensive external system I/O; fieldbus options possible

Download ABB IRB 2400/16 digital twin

Start for free
The Heavy-Duty Industrial Robot ABB IRB 2400/16 is a versatile and robust automation solution designed for demanding industrial applications. With seven axes, a payload capacity of 16 kg, and an impressive reach of 1550 mm, this robot ensures high precision and repeatability of 0.030 mm. Engineered for a wide range of environments, it features an operating temperature range of 5 to 45 °C and is available in multiple mounting orientations, making it ideal for various installations, including cleanroom settings, thanks to its compliance with US Federal Standard 209 Class 100 and ISO 14644-1 Class 5 standards.
3D View

What are the technology applications of IRB 2400/16?

ABB IRB 2400/16 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 2400/16:Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
