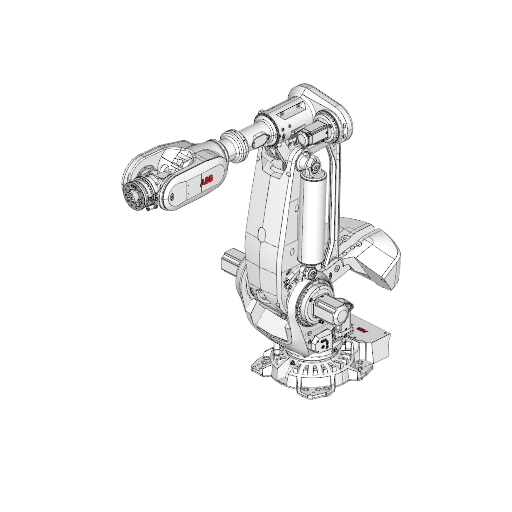

ABB IRB 7720-530/3.1

Industrial Robot ABB IRB 7720-530/3.1
Specifications
Type
Industrial Robot
Brand
ABB
Model
IRB 7720-530/3.1
Axes
7
Payload
530 kg
Reach
3.1 m
Repeatability
0.6 mm
Weight
2590 kg
Maximum speed
1600 mm/s
IP rating
IP67 (standard); Foundry Plus protection optional
Operating temperature
During operation +5°C to +50°C; storage/transportation −25°C to +55°C; short periods up to +70°C
Mounting orientation
Floor
Controller
OmniCore V400XT
Power supply
380-480 VAC, 50/60 Hz
Certifications
Emission EMC/EMI-shielded; complies with IEC/EN robot safety standards; CSA Z434 (USA/Canada) Optional
Safety functions
Double circuits with supervision; emergency stops; 3-position enable device; Extended safety via SafeMove
Communication interfaces
All major industrial communication protocols integrated in OmniCore; supports fieldbuses and IoT gateway with OPC UA and MQTT

The Industrial Robot ABB IRB 7720-530/3.1 is a versatile 7-axis robotic solution designed to handle a remarkable payload capacity of 530 kg with a reach of 3.1 meters. With a repeatability of 0.6 mm and a maximum speed of 1600 mm/s, this robust robot operates effectively within a wide temperature range, supporting various industrial applications. Featuring an OmniCore V400XT controller and compliance with major industrial communication protocols, the IRB 7720-530/3.1 ensures seamless integration into advanced automation systems.

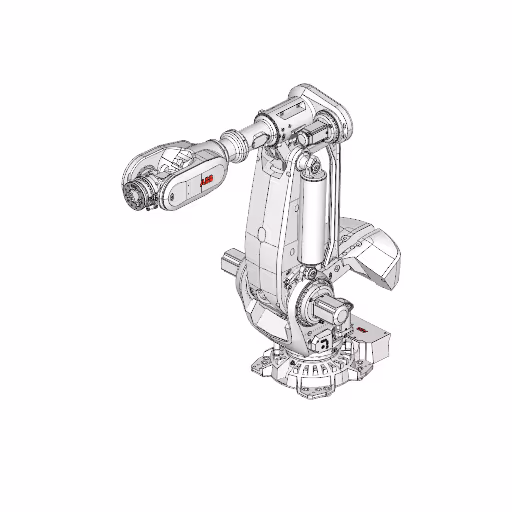

3D View

What are the technology applications of IRB 7720-530/3.1 ?

ABB IRB 7720-530/3.1 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 7720-530/3.1: Machine Tending, Multiaxis cutting, Pick and place, Robot milling, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜
ENCY Robot interface

ABB IRB 7720-530/3.1 applications programmed with ENCY Robot

Multiaxis cutting

Multiaxis cutting

Pick and place

Pick and place

Robot milling

Robot milling

Robot welding

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.
Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.
Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.
If you would like to purchase ENCY, please contact us for a quote.
No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 7720-530/3.1 or request a quote, please contact the manufacturer or an authorized local supplier.
