DOBOT CR5A

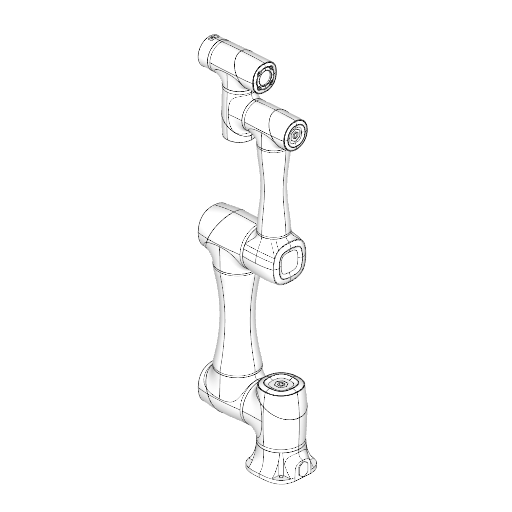

Cobot DOBOT CR5A

Specifications

Type

Cobot

Brand

Dobot

Model

CR5A

Axes

6

Payload

5 kg

Reach

900 mm

Repeatability

0.02 mm

Weight

25 kg

Speed at rated payload

2 m/s

IP rating

IP54

Operating temperature range

0° ～ 50° C

Mounting orientation

Any angle

Controller

DOBOT CC262 (Model DT-CC262-0A)

Power supply

48V DC and AC input options (via controller CC262)

Power consumption

150 W

Tool flange

ISO 9409-1 compliant flange

Certifications

ISO 10218-1; ISO TS 15066; CE; Functional safety certificate (ISO 13849 PLd); SGS NA Listed Mark

Safety functions

22 built-in safety features; 5 adjustable levels of collision detection; ISO 13849 PLd; ISO TS 15066 compliance

Communication interfaces

TCP/IP, Modbus, Profinet, Ethernet/IP, RS485, Wi-Fi

Download DOBOT CR5A digital twin

Start for free
The Cobot DOBOT CR5A is a versatile six-axis robotic arm designed for industrial automation, capable of handling a maximum payload of 5 kg with a reach of 900 mm. With a high repeatability of 0.02 mm and a maximum speed of 2 m/s, it operates efficiently across various applications within an operating temperature range of 0° to 50°C. Featuring 22 built-in safety functions and compliance with multiple international standards, the CR5A ensures reliable performance while offering robust communication interfaces for seamless integration into existing systems.
3D View

What are the technology applications of CR5A?

DOBOT CR5A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DOBOT CR5A:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

DOBOT CR5A applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can DOBOT CR5A be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DOBOT CR5A or request a quote, please contact the manufacturer or an authorized local supplier.
