Industrial Robot EFORT ER210-2700 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Efort

Model

ER210-2700

Axes

Payload

210 kg

Reach

2674 mm

Repeatability

0.1 mm

Weight

1110 kg

Maximum speed

200 °/sec (at J6 axis)

IP rating

Robot: IP65, Cabinet: IP54

Mounting orientation

Floor

Controller

AC servo drive (robot controller with soft-PLC)

Power supply

Three-phase 380 V AC ±10%, PE

Power consumption

25 kW

Certifications

CE; ISO quality management system; ATEX (for painting robots, optional)

Safety functions

High-performance collision detection; Emergency stop; Safety door contacts

Communication interfaces

Fieldbus interfaces; Expandable local and remote IO (DI/DO/AI/AO), EtherCAT

The Industrial Robot EFORT ER210-2700 is a versatile automation solution equipped with 6 axes and capable of handling payloads up to 210 kg, making it ideal for a variety of industrial applications. With an impressive reach of 2674 mm and a repeatability of 0.1 mm, this robot operates at a maximum speed of 200 °/sec on the J6 axis, ensuring precision and efficiency in operations. Designed for floor mounting and featuring an IP65 rating for the robot and IP54 for the cabinet, the EFORT ER210-2700 is equipped with advanced safety functions, including high-performance collision detection and emergency stop mechanisms, ensuring reliable and safe operation in demanding environments.

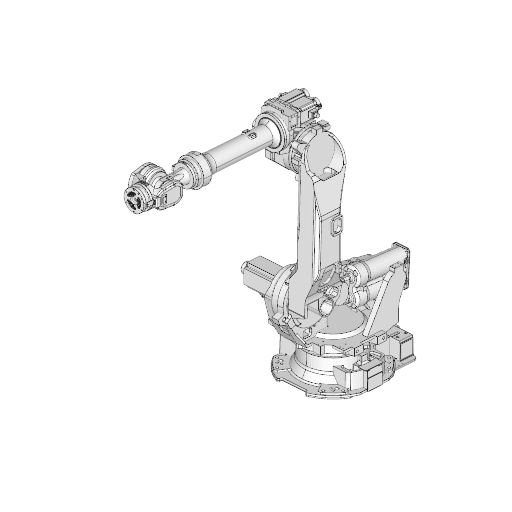

3D View

What are the technology applications of ER210-2700?

EFORT ER210-2700 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EFORT ER210-2700: Assembly, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EFORT ER210-2700 applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EFORT ER210-2700 or request a quote, please contact the manufacturer or an authorized local supplier.
