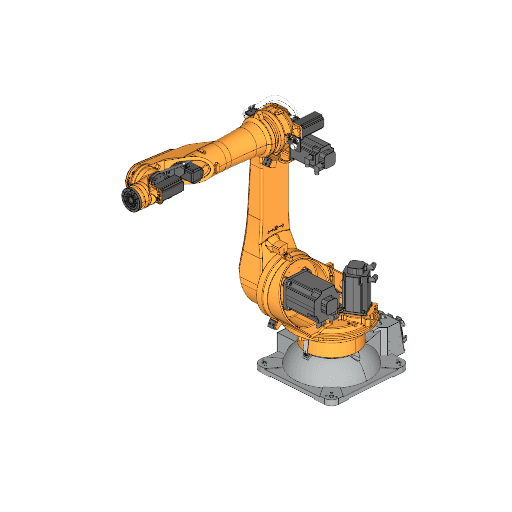

Industrial Robot EFORT ER50B-2100 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Efort

Model

ER50B-2100

Axes

Payload

50 kg

Reach

2146 mm

Repeatability

0.06 mm

Weight

550 kg

Maximum speed

365 °/s

Speed at rated payload

365 °/s

IP rating

IP54 / IP67 (wrist)

Mounting orientation

Floor / Ceiling

Power supply

Three-phase AC 380-440V, 50/60Hz

Power consumption

4500 W

Tool flange

External device mounting interface with equipment mounting face compatible for pneumatic/hydraulic pipelines and I/O sockets

Certifications

Safety functions

Collision detection; Motion limit stoppers; Operator safety precautions per manual

Communication interfaces

EtherCAT, Modbus TCP, TCP/IP, Ethernet/IP; options: EC-to-Profinet, EC-to-CC-LINK, Modbus-to-DeviceNet, Profibus via modules

The Industrial Robot EFORT ER50B-2100 is a versatile 6-axis robot designed for demanding automation tasks, offering a payload capacity of 50 kg and a reach of 2146 mm. With a remarkable repeatability of 0.06 mm and maximum speed of 365 °/s, this robust system operates efficiently in both floor and ceiling mounting orientations. Equipped with advanced safety functions and multiple communication interfaces, it ensures reliable performance, making it an ideal choice for streamlined industrial applications.

3D View

What are the technology applications of ER50B-2100?

EFORT ER50B-2100 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EFORT ER50B-2100: Deburring, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EFORT ER50B-2100 applications programmed with ENCY Robot

Multiaxis cutting

Pick and place

Robot welding
