EPSON C12-A1401S

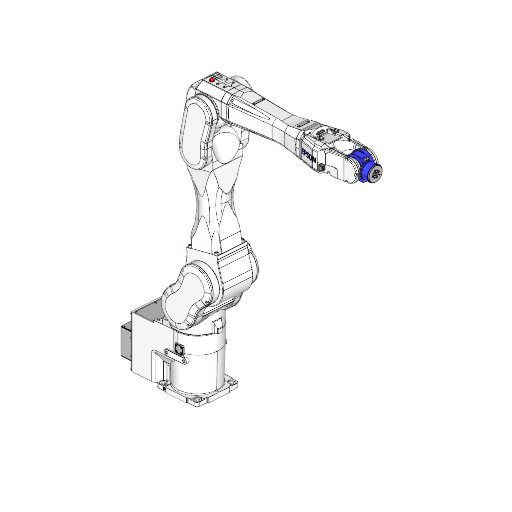

Industrial Robot EPSON C12-A1401S

Specifications

Type

Industrial Robot

Brand

Epson

Model

C12-A1401S

Axes

6

Payload

12 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

63 kg

Speed at rated payload

0.5 sec (standard cycle time with 1 kg payload)

IP rating

IP20 (standard), optional IP67 models available

Operating temperature range

5 to 40 °C

Mounting orientation

Tabletop / Wall / Ceiling

Controller

RC700-A

Power supply

AC 200-240 V, single-phase, 50/60 Hz

Power consumption

2.5 kVA

Certifications

CE Marking; UL 1740; ANSI/RIA R15.06; NFPA 79; RoHS; EMC Directive; Machinery Directive

Cleanroom class

ISO Class 4

Safety functions

Safety standards: CE Mark, EMC Directive, Machinery Directive, ANSI/RIA R15.06-2012, NFPA79 (2007 Edition)

Communication interfaces

Ethernet (TCP/IP), RS-232C, USB, fieldbus options (EtherNet/IP, DeviceNet, PROFINET, PROFIBUS, CC-Link, EtherCAT)

Download EPSON C12-A1401S digital twin

Start for free
The EPSON C12-A1401S is a versatile 6-axis industrial robot designed to enhance automation in various applications. With a payload capacity of 12 kg and a reach of 1400 mm, it operates with a repeatability of 0.05 mm and a maximum speed of 720 °/s. This robust robot supports multiple mounting orientations, operates efficiently within a temperature range of 5 to 40 °C, and complies with multiple safety standards, making it an ideal choice for demanding industrial environments.
3D View

What are the technology applications of C12-A1401S?

EPSON C12-A1401S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C12-A1401S:Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

EPSON C12-A1401S applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can EPSON C12-A1401S be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C12-A1401S or request a quote, please contact the manufacturer or an authorized local supplier.
