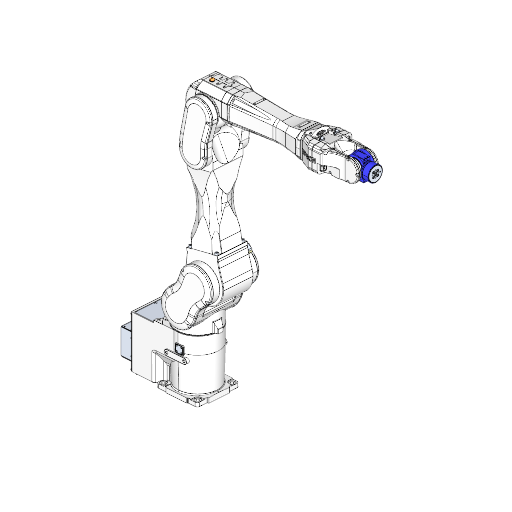

EPSON C12-C1401C

Industrial Robot

Epson6 axesDigital twin for ENCY Robot

About

The Industrial Robot EPSON C12-C1401C is a versatile and high-performance automation solution featuring 6 axes and a payload capacity of up to 12 kg. With a reach of 1400 mm and exceptional repeatability of 0.05 mm, this robot is designed for maximum efficiency and precision in various industrial applications. It operates within a robust temperature range of 5 to 40 °C and boasts an impressive maximum speed of 8751 mm/s, ideal for fast-paced manufacturing environments.

What are the technology applications of C12-C1401C?

EPSON C12-C1401C is a versatile robot suitable for a wide range of industrial applications. Primary applications of EPSON C12-C1401C: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

EPSON C12-C1401C applications programmed with ENCY Robot

Pick and place

Polishing

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C12-C1401C or request a quote, please contact the manufacturer or an authorized local supplier.

Download EPSON C12-C1401C digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Epson
Model: C12-C1401C
Axes: 6

Performance

Payload: 12 kg
Reach: 1400 mm
Repeatability: 0.05 mm
Weight: 63 kg
Maximum speed: 8751 mm/s
Speed at rated payload: 8751 mm/s

Environment

IP rating: IP67
Operating temperature: 5 to 40 °C
Mounting orientation: Tabletop, Wall, Ceiling
Cleanroom class: ISO 4

Integration

Controller: RC800A
Power supply: AC 200-240 V, single phase
Power consumption: 2.5 kVA
Tool flange: Standard ISO robot flange, wrist-centered flange surface at 1,480 mm reach
Communication interfaces: Electric: D-Sub 15-pin, RJ45 Cat5e 8-pin; Force sensor 6-pin; Pneumatic: Ø6 mm ×2
Safety functions: SafeSense (safety-rated speed and position monitoring according to EN/ISO 13849)
Certifications: TÜV-certified to meet ISO 10218-1, UL 1740, CSA Z434, ISO 13849, CE Mark, KC Mark
