Industrial Robot FANUC M-20iA-35M Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-20iA-35M

Axes

Payload

35 kg

Reach

1813 mm

Repeatability

0.040 mm

Weight

252 kg

Maximum speed

400 °/s (axis J6)

Speed at rated payload

350 °/s (axes J4 & J5)

IP rating

Body IP54/IP55 standard/optional; Wrist & J3 arm IP67 standard/optional

Mounting orientation

Floor, Upside-down (ceiling/inverted), Angle

Controller

R-30iB Plus

Power supply

380-575 V AC, 3-phase, 50/60 Hz

Power consumption

1 kW

Certifications

ISO 9283, EN 60204-1, CE

Safety functions

Dual Check Safety (DCS), Collision Guard

Communication interfaces

Ethernet/IP, Integrated I/O via upper arm In/Out, Integrated air supply

The FANUC M-20iA-35M is a versatile industrial robot designed for efficient automation in various applications. With six axes, it offers a payload capacity of 35 kg and an impressive reach of 1813 mm, ensuring high precision with a repeatability of 0.040 mm. Operating under the R-30iB Plus controller, this robust robot features a maximum speed of 400 °/s and comes with multiple safety functions like Dual Check Safety (DCS) and Collision Guard, making it a reliable choice for any industrial setting.

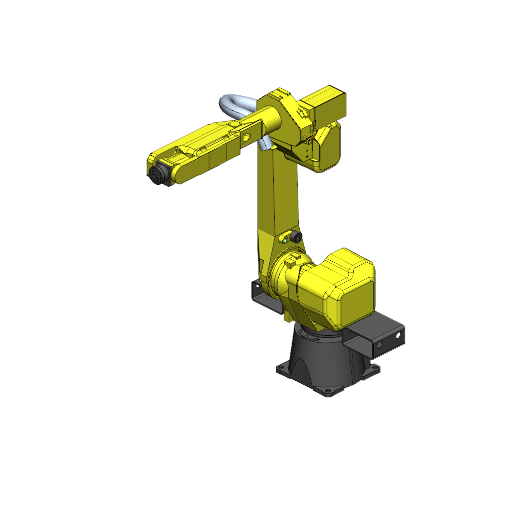

3D View

What are the technology applications of M-20iA-35M?

FANUC M-20iA-35M is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-20iA-35M: Deburring, Machine Tending, Multiaxis cutting, Pick and place, Robot milling. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-20iA-35M applications programmed with ENCY Robot

Multiaxis cutting

Pick and place

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC M-20iA-35M or request a quote, please contact the manufacturer or an authorized local supplier.
