Industrial Robot FANUC M-20iD-12L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-20iD-12L

Axes

Payload

12 kg

Reach

2272 mm

Repeatability

0.030 mm

Weight

250 kg

Maximum speed

720 °/s

Speed at rated payload

720 °/s

IP rating

Body: IP54, Wrist & J3 arm: IP67

Mounting orientation

Floor, Upside-down, Angle (Wall)

Controller

R-30iB Plus

Power supply

3-phase 380-575 V, 50/60 Hz

Power consumption

3.8 kW

Tool flange

Hollow-wrist style, faceplate same as M-20iD series, optional ISO flange adapter

Certifications

CE marking; conforms to IEC/ISO safety standards such as ISO 13849-1, IEC 61508; meets Class 4 PL e / SIL 3 safety level

Cleanroom class

ISO 4 available option

Safety functions

Dual-Check Safety (DCS)

Communication interfaces

EtherNet/IP, PROFINET, EtherCAT, DeviceNet, CC-Link, CC-Link IE Field, OPC UA, Modbus (non-safe/non-standard option), Ethernet

The FANUC M-20iD-12L is a versatile 6-axis industrial robot designed for high-performance automation tasks, featuring an impressive payload capacity of 12 kg and a reach of 2272 mm. With a repeatability of 0.030 mm and a maximum speed of 720 °/s, this robot ensures precision and efficiency in various applications. It comes equipped with advanced safety functions and robust communication interfaces, making it an ideal solution for industries demanding reliable automation solutions.

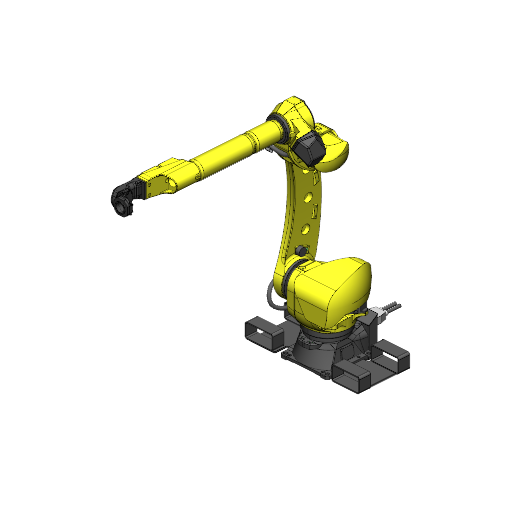

3D View

What are the technology applications of M-20iD-12L?

FANUC M-20iD-12L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-20iD-12L: Assembly, Machine Tending, Pick and place, Polishing, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-20iD-12L applications programmed with ENCY Robot

Pick and place

Polishing

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC M-20iD-12L or request a quote, please contact the manufacturer or an authorized local supplier.
