Industrial Robot HSR JR618-2000 Specs and Applications

Specifications

Type

Industrial Robot

Brand

HSR

Model

JR618-2000

Axes

Payload

60 kg

Reach

2000 mm

Repeatability

0.06 mm

Weight

730 kg

IP rating

IP54 (body)

Mounting orientation

Ground (floor), Side-hanging, Upside-down

Power supply

Three-phase AC 380V

Power consumption

4.3 kW

Communication interfaces

I/O: 32 inputs / 31 outputs (NPN/PNP available); reserved body signal line 24 bits

The Industrial Robot HSR JR618-2000 is a versatile automation solution featuring six axes and a substantial payload capacity of 60 kg. With a reach of 2000 mm and a repeatability of 0.06 mm, this robust robot weighs 730 kg and is designed to operate efficiently in demanding environments, boasting an IP54 rating for its body. It supports multiple mounting orientations, including ground (floor), side-hanging, and upside-down, and is powered by a three-phase AC 380V supply with a power consumption of 4.3 kW, featuring extensive communication interfaces for seamless integration.

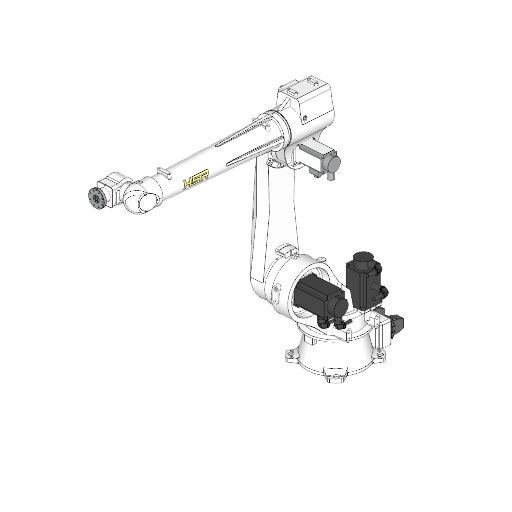

3D View

What are the technology applications of JR618-2000?

HSR JR618-2000 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HSR JR618-2000: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
