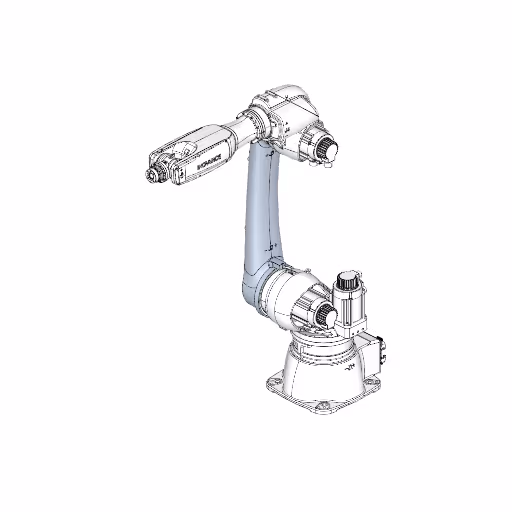

INOVANCE IR-R25-178S5

Industrial Robot

INOVANCE6 axesDigital twin for ENCY Robot

About

The Industrial Robot INOVANCE IR-R25-178S5 is a high-performance automation solution designed for a range of industrial applications. Featuring six axes and a maximum payload capacity of 25 kg, it offers an impressive reach of 1783 mm and a remarkable repeatability of 0.03 mm. This robust robot operates at a maximum speed of 400 °/s, with an average input power of 0.9 kW at rated payload, making it an efficient choice for complex tasks in various manufacturing environments.

What are the technology applications of IR-R25-178S5?

INOVANCE IR-R25-178S5 is a versatile robot suitable for a wide range of industrial applications. Primary applications of INOVANCE IR-R25-178S5: Assembly, Deburring, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

INOVANCE IR-R25-178S5 applications programmed with ENCY Robot

Pick and place

Robot welding

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase INOVANCE IR-R25-178S5 or request a quote, please contact the manufacturer or an authorized local supplier.

Download INOVANCE IR-R25-178S5 digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: INOVANCE
Model: IR-R25-178S5
Axes: 6

Performance

Payload: 25 kg
Reach: 1783 mm
Repeatability: 0.03 mm
Weight: 255 kg
Maximum speed: 400 °/s (Joint 4 axis)
Speed at rated payload: 0.9 kW average input power

Environment

IP rating: Base IP65, Wrist IP67
Mounting orientation: Floor mounted

Integration

Controller: IRCB501-6ND
Power supply: AC 380-415V, 50/60Hz (three-phase) / Standard power AC 220-240V single phase
Power consumption: 1000 W
Communication interfaces: EtherCAT master/slave, Ethernet/IP slave, PROFINET slave, CANopen master, Modbus TCP master/slave, TCP/IP custom protocol, RS232/RS485, USB2.0
Safety functions: Functional Safety (with -INT cabinet + safety extension card)
Certifications: CE, cSGSus, Functional Safety (for -INT models)
