Industrial Robot KAWASAKI RS003N-A Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

RS003N-A

Axes

Payload

3 kg

Reach

620 mm

Repeatability

0.02 mm

Weight

20 kg

Maximum speed

6000 mm/s

Speed at rated payload

540 °/s

IP rating

IP54

Mounting orientation

Floor, Ceiling

Controller

F60

Power supply

AC 200-230V, 50/60Hz, 3-phase

Tool flange

ISO9409-1-40-4-M5 (Flange with four M5 tap holes, ISO9409-1 compliant)

Certifications

Global safety standards compliance; ISO 13849-1 PLe, IEC 61508 SIL-3

Safety functions

Emergency Stop, Hold, Cubic-S optional safety unit: space monitoring, speed monitoring, safety output; safety circuit satisfies ISO 13849-1 PLe / IEC 61508 SIL3

Communication interfaces

USB; Ethernet; RS-232C

The Industrial Robot KAWASAKI RS003N-A is a highly versatile automation solution featuring six axes, capable of handling a payload of 3 kg with a reach of 620 mm. This robust robot ensures exceptional precision with a repeatability of 0.02 mm and is designed for maximum speed up to 6000 mm/s, making it ideal for a variety of industrial applications. With an IP54 rating and compatible mounting orientations for both floor and ceiling setups, the KAWASAKI RS003N-A is equipped with the F60 controller and boasts advanced safety functions, ensuring compliance with global safety standards.

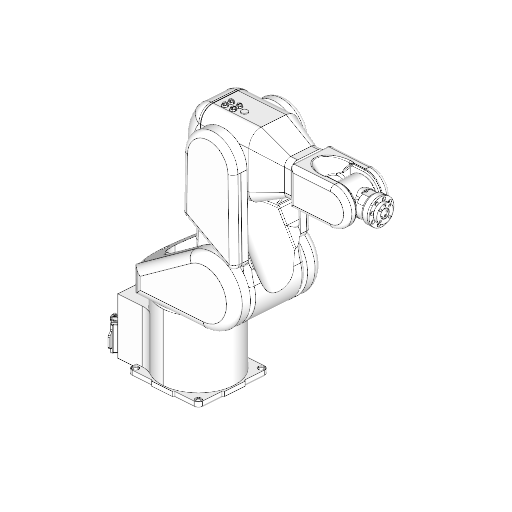

3D View

What are the technology applications of RS003N-A?

KAWASAKI RS003N-A is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI RS003N-A: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

KAWASAKI RS003N-A applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase KAWASAKI RS003N-A or request a quote, please contact the manufacturer or an authorized local supplier.
