Industrial Robot KAWASAKI RS030N-B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Kawasaki

Model

RS030N-B

Axes

Payload

30 kg

Reach

2100 mm

Repeatability

0.06 mm

Weight

555 kg

Maximum speed

360 °/s

Speed at rated payload

180 °/s

IP rating

Wrist: IP67; Base axes (arm): IP65

Mounting orientation

Floor or Ceiling

Controller

F02 / E02

Power consumption

4.5 kVA

The Industrial Robot KAWASAKI RS030N-B is a highly versatile automation solution featuring six axes and a payload capacity of 30 kg. With a reach of 2100 mm and impressive repeatability of 0.06 mm, this robot ensures accurate performance at maximum speeds of 360 °/s and 180 °/s at the rated payload. Designed for flexibility, it can be mounted on the floor or ceiling, and offers robust protection with an IP67 rating for the wrist and IP65 for the base axes, making it suitable for a wide range of industrial applications.

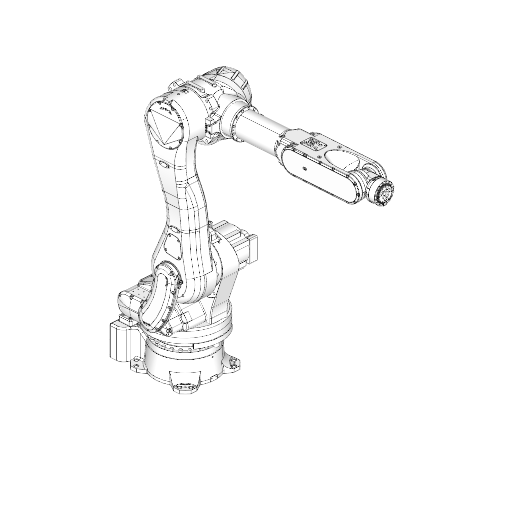

3D View

What are the technology applications of RS030N-B?

KAWASAKI RS030N-B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of KAWASAKI RS030N-B: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
