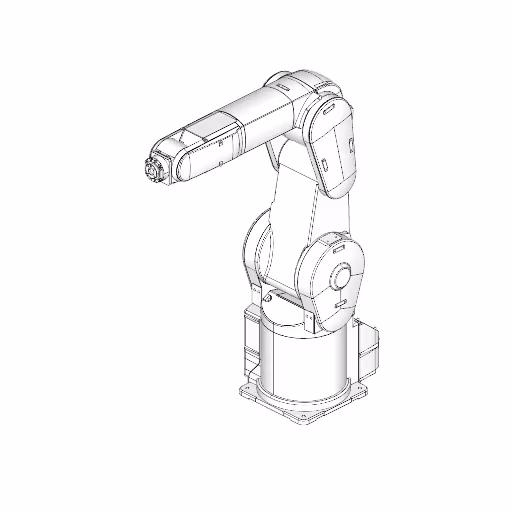

Industrial Robot MITSUBISHI RV-7FL Specs and Applications

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-7FL

Axes

Payload

7 kg

Reach

908 mm

Repeatability

0.02 mm

Weight

67 kg

Maximum speed

11064 mm/s

Speed at rated payload

11064 mm/s

IP rating

IP67 (standard for RV-7FL in oil mist/environment-protected configuration)

Mounting orientation

Floor, ceiling or wall mounting possible (wall mounting with limitations in the J1 axis)

Controller

CR800-D / CR800-R + R16RTCPU

Power supply

Single phase AC 200-230V, 50/60Hz

Power consumption

2 kVA

Tool flange

ISO 9409-1-31.5

Certifications

CE, IP67, ISO Clean Class 3, ESD certified, ATEX for Zone 1 & 2

Cleanroom class

ISO Class 3 (optional cleanroom version available)

Safety functions

STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operation Stop), SLS (Safely-Limited Speed), SLP (Safely-Limited Position)

Communication interfaces

Ethernet, USB, camera interface, external axes, hand I/O; fieldbus expansion cards optional

The MITSUBISHI RV-7FL is a versatile industrial robot designed for efficient automation, featuring 6 axes and a payload capacity of 7 kg. With a reach of 908 mm and a remarkable speed of 11064 mm/s, this robot ensures high precision with a repeatability of 0.02 mm, making it suitable for a variety of applications. The RV-7FL is IP67 rated for protection against oil mist, and it can be mounted on the floor, ceiling, or wall, providing flexibility in industrial environments.

3D View

What are the technology applications of RV-7FL?

MITSUBISHI RV-7FL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-7FL: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
