Industrial Robot MOTOMAN GP50 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

GP50

Axes

Payload

50 kg

Reach

2061 mm

Repeatability

0.070 mm

Weight

570 kg

Maximum speed

187 °/s

IP rating

Body IP54 standard, wrist IP67; optional Body IP65/67

Operating temperature

15 to 45 °C

Mounting orientation

Floor, Wall, Ceiling

Controller

YRC1000

Power supply

4 kVA

Power consumption

4 kVA

Certifications

CE; ISO standards (e.g. ISO 10218-1 compliant safety architecture); functional safety Category 3 unit for safety; presumably UL, TÜV [some certifications inferred, not all confirmed]

Safety functions

Emergency Stop, Safety I/O, Dual-channel safety system (MSU/FSU), Functional Safety Zones, Position & Speed Monitoring, Tool/Workspace Interference Zones

Communication interfaces

Ethernet (2 ports), Digital I/O, Analog I/O; fieldbus systems including Profinet, DeviceNet, Profibus, Ethernet/IP, ModbusTCP, ASI-Bus, CCLink, EtherCAT and safety variants

The Industrial Robot MOTOMAN GP50 is a high-performance automation solution featuring six axes and a payload capacity of 50 kg. With a reach of 2061 mm and a repeatability of 0.070 mm, this robot is designed for versatile applications, achieving maximum speeds of 187 °/s. It operates within a temperature range of 15 to 45 °C and is equipped with the YRC1000 controller, ensuring reliable communication through multiple interfaces including Ethernet and various fieldbus systems, all while adhering to strict safety and compliance standards.

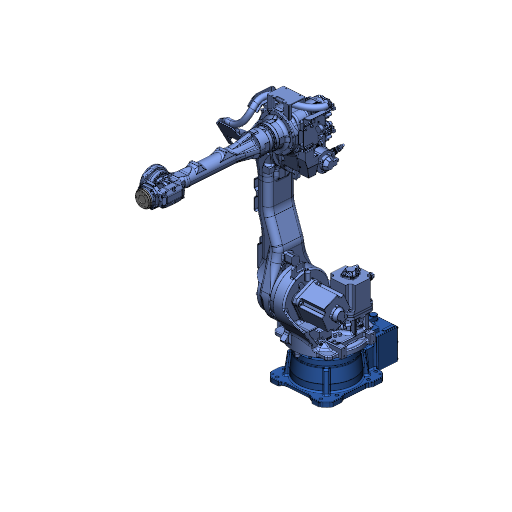

3D View

What are the technology applications of GP50?

MOTOMAN GP50 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN GP50: Assembly, Dispensing, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
