Industrial Robot MOTOMAN GP50-FGG Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

GP50-FGG

Axes

Payload

50 kg

Reach

2061 mm

Repeatability

0.030 mm

Weight

585 kg

Maximum speed

250 °/s (fastest axis)

Speed at rated payload

250 °/s (fastest axis)

IP rating

IP65/67

Mounting orientation

Floor, ceiling, wall

Controller

YRC1000

Power supply

4 kVA

Power consumption

4000 VA

Certifications

Communication interfaces

Profibus, Profinet, Ethernet-IP, DeviceNet, optional I/O expansion, image processing, conveyor belt synchronization, safety control

The Industrial Robot MOTOMAN GP50-FGG is a high-performance automation solution designed for diverse industrial applications. With six axes and a payload capacity of 50 kg, it features a maximum reach of 2061 mm and exceptional repeatability of 0.030 mm, making it ideal for precise tasks. Equipped with the YRC1000 controller and an IP65/67 rating, this robust robot can be mounted on the floor, ceiling, or wall, ensuring flexibility and reliability in various environments.

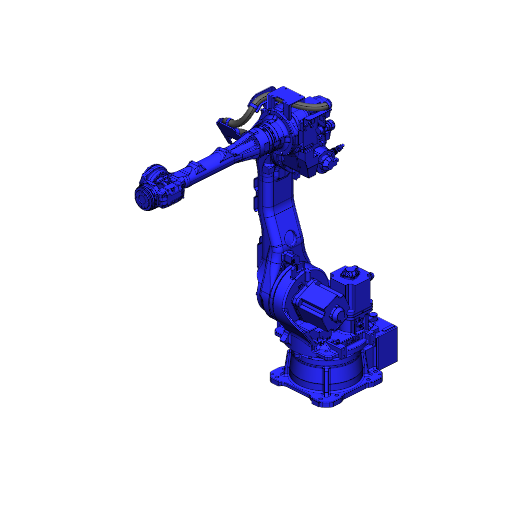

3D View

What are the technology applications of GP50-FGG?

MOTOMAN GP50-FGG is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN GP50-FGG: Assembly, Machine Tending, Multiaxis cutting, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.
