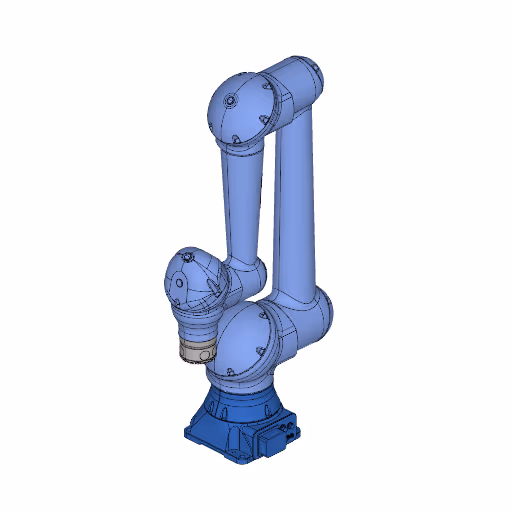

Industrial Robot MOTOMAN HD10DT Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

HD10DT

Axes

Payload

10 kg

Reach

1379 mm

Repeatability

0.05 mm

Weight

58 kg

Maximum speed

2000 mm/s

Speed at rated payload

1000 mm/s

IP rating

IP67

Mounting orientation

Floor, Wall, Ceiling, Tilt

Controller

YRC1000 / YRC1000micro

Power supply

1 kVA

Tool flange

ISO 9409-1

Certifications

EN ISO 10218-1:2011, ISO/TS 15066:2016, ISO 13849-1 PLd Cat.3

Cleanroom class

ISO Class 5

Safety functions

Power and Force Limiting (PFL), advanced pinch-point protection, automatic retraction from clamp situations, multiple collaborative modes

Communication interfaces

Ethernet TCP/IP, Profinet, Ethernet/IP, DeviceNet, I/O Expansion, Analogue Interface

The Industrial Robot MOTOMAN HD10DT is a highly versatile 6-axis robot engineered for efficiency and precision in demanding automation environments. With a payload capacity of 10 kg and a reach of 1379 mm, this robot offers exceptional repeatability of 0.05 mm and can achieve maximum speeds of 2000 mm/s. Designed for cleanroom applications, it features an IP67 rating and is compatible with multiple mounting orientations, making it ideal for a broad range of industrial tasks while adhering to relevant safety and performance standards.

3D View

What are the technology applications of HD10DT?

MOTOMAN HD10DT is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN HD10DT: Deburring, Machine Tending, Pick and place, Robot welding, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
