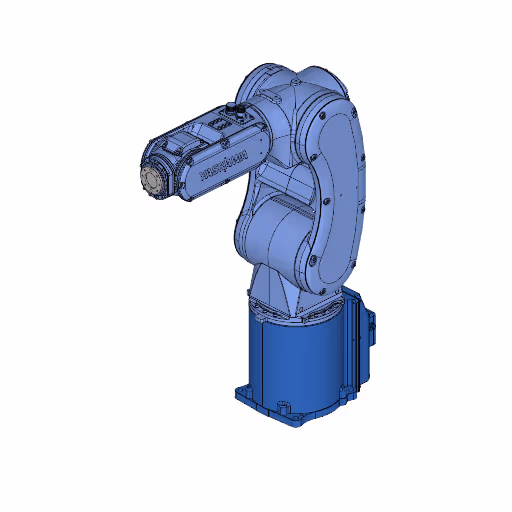

Industrial Robot MOTOMAN NEX4 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Motoman

Model

NEX4

Axes

Payload

4 kg

Reach

550 mm

Repeatability

0.01 mm

Weight

29 kg

Maximum speed

1000 °/s

Speed at rated payload

1000 °/s

IP rating

IP67

Mounting orientation

Floor

Controller

MOTOMAN NEXT platform (with NVIDIA-based ACU), compatible with classic robot control + SIGMA-X servo drives

Power supply

1 kVA

Power consumption

1000 VA

Safety functions

Functional Safety including axis range limit, robot range limit, speed limit, tool angle monitor, tool change monitor, and general safety I/O

Communication interfaces

Integrated Ethernet (Cat6) and media cable routed through arm, with plug-and-play actuators or cameras; open ARM-flange media/Ethernet supplied

The Industrial Robot MOTOMAN NEX4 is a robust and versatile solution featuring six axes and a payload capacity of 4 kg, making it ideal for a wide range of automation tasks. With a reach of 550 mm and exceptional repeatability of 0.01 mm, this 29 kg robot achieves a maximum speed of 1000 °/s, ensuring efficient operation at rated payloads. Designed with an IP67 rating for protection, it is mounted on the floor and equipped with the advanced MOTOMAN NEXT platform controller, providing seamless integration with classic robot control systems and enhanced safety functions for reliable performance in demanding industrial environments.

3D View

What are the technology applications of NEX4?

MOTOMAN NEX4 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MOTOMAN NEX4: Assembly, Dispensing, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MOTOMAN NEX4 applications programmed with ENCY Robot

Pick and place

Robot welding
