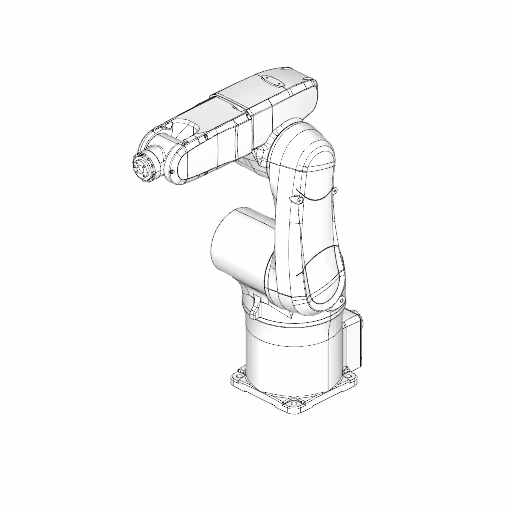

OMRON Viper 650

Industrial Robot

OMRON6 axesDigital twin for ENCY Robot

About

The Industrial Robot OMRON Viper 650 is a high-performance automation solution featuring six axes, a payload capacity of 5 kg, and a reach of 653 mm. With a remarkable repeatability of 0.02 mm and a maximum speed of 8200 mm/s, this robot is designed to operate efficiently in various environments. It offers versatile mounting options and is suitable for cleanroom applications, ensuring compliance with rigorous industry standards.

What are the technology applications of Viper 650?

OMRON Viper 650 is a versatile robot suitable for a wide range of industrial applications. Primary applications of OMRON Viper 650: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

OMRON Viper 650 applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase OMRON Viper 650 or request a quote, please contact the manufacturer or an authorized local supplier.

Download OMRON Viper 650 digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: OMRON
Model: Viper 650
Axes: 6

Performance

Payload: 5 kg
Reach: 653 mm
Repeatability: 0.02 mm
Weight: 34 kg
Maximum speed: 8200 mm/s
Speed at rated payload: 8200 mm/s

Environment

IP rating: IP40 (base), IP54/IP65 optional on joints
Operating temperature: 5 to 40 °C
Mounting orientation: Table, Floor, Inverted (Ceiling)
Cleanroom class: Class 10 (ISO Class equivalent option)

Integration

Controller: eMotionBlox-60R (or SmartController EX / NJ/NX/NY Series / NJ501-R for EtherCAT model)
Power supply: 24 VDC (6 A) or 200-240 VAC single-phase (10 A)
Power consumption: 240 W
Tool flange: 40 mm dia H8; 4×M5×0.8 holes on 31.5 mm bolt circle; plus register-pin hole (5 mm)
Communication interfaces: EtherCAT to NJ501-R; On-board I/O 12 inputs / 8 outputs; RS-232C serial port; Ethernet
Certifications: cULus Compliant

Other Industrial Robot by OMRON

All OMRON components

3DStart for free

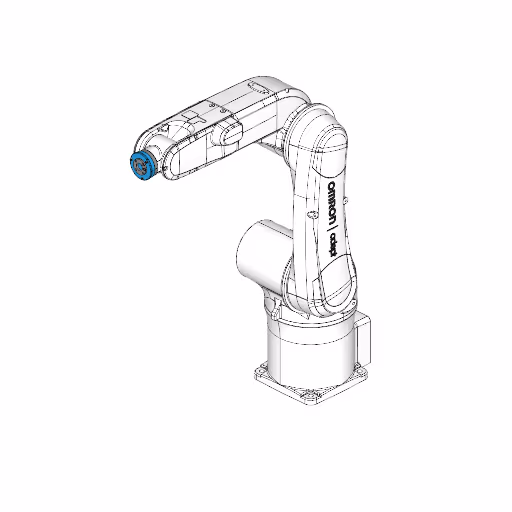

OMRON Viper 850 Cleanroom
