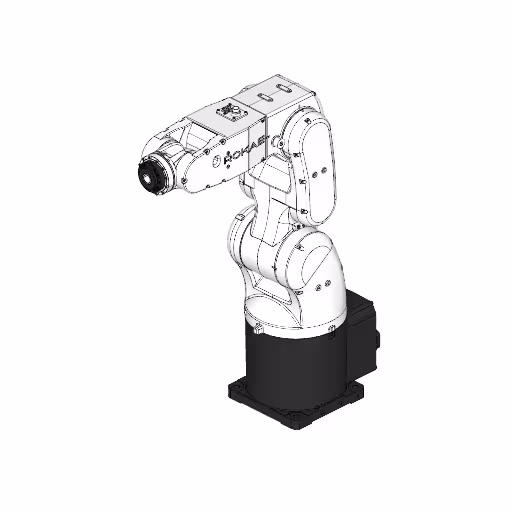

Industrial Robot ROKAE NB4h-4 0.58 Specs and Applications

Specifications

Type

Industrial Robot

Brand

ROKAE

Model

NB4h-4_0.58

Axes

Payload

4 kg

Reach

580 mm

Repeatability

0.02 mm

Weight

22 kg

Maximum speed

1.5 m/s

IP rating

IP67

Mounting orientation

Floor, Ceiling

Controller

XBC5 series controller (with optional built-in controller), using the xCore control platform

Power supply

90-264 VAC, 47-63 Hz or 48 VDC

Power consumption

220 W

Certifications

EN ISO 13849-1, EN ISO 10218-1 PL d Cat.3; ISO 15066; CE; KCs; EAC

Cleanroom class

ISO Class 5

Safety functions

Over 21 adjustable safety features including collision detection, safety zones, collaboration mode; dual redundant channels for safety I/Os

Communication interfaces

TCP/IP, Modbus TCP, Profinet, Ethernet/IP, DeviceNet, CC-Link, CC-Link IE Field Basic

The Industrial Robot ROKAE NB4h-4_0.58 is a highly versatile six-axis robot designed for precision automation in various industrial applications. With a payload capacity of 4 kg and a reach of 580 mm, this robot ensures repeatability of up to 0.02 mm, making it ideal for tasks requiring high accuracy. It features an IP67 rating for protection against dust and water, a robust XBC5 series controller compatible with the xCore control platform, and over 21 adjustable safety functions to enhance operational safety, making it a reliable choice for cleanroom environments classified as ISO Class 5.

3D View

What are the technology applications of NB4h-4_0.58?

ROKAE NB4h-4 0.58 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ROKAE NB4h-4 0.58: Deburring, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
