Cobot UNIVERSAL UR10 (Alternative) Specs and Applications

Specifications

Type

Cobot

Brand

Universal

Model

UR10 (Alternative)

Axes

Payload

10 kg

Reach

1300 mm

Repeatability

0.100 mm

Weight

29 kg

Maximum speed

1 m/s

Speed at rated payload

1 m/s

IP rating

Robot arm: IP54; Control box: IP54

Mounting orientation

Any orientation

Controller

Universal Robots Control Box with PolyScope GUI

Power supply

100-240 VAC, 47-440 Hz

Power consumption

615 W

Tool flange

ISO 9409-1-50-4-M6

Certifications

EN ISO 13849-1, PLd Category 3; EN ISO 10218-1; TÜV NORD; ISO 14644-1 cleanroom compliance

Cleanroom class

Robot Arm: ISO Class 6; Control Box: ISO Class 6

Safety functions

17 sophisticated safety functions, PLd Category 3 in accordance with EN ISO 13849-1

Communication interfaces

MODBUS TCP, Ethernet/IP, PROFINET, USB 2.0, USB 3.0

The Cobot UNIVERSAL UR10 (Alternative) is a six-axis robotic arm designed for versatile industrial automation applications, featuring a payload capacity of 10 kg and a reach of 1300 mm. With a remarkable repeatability of 0.100 mm and a maximum speed of 1 m/s, this robot ensures precise and efficient performance across various tasks. Certified for cleanroom class ISO 6 and equipped with 17 advanced safety functions, the UR10 meets rigorous safety and efficiency standards, making it an ideal choice for modern manufacturing environments.

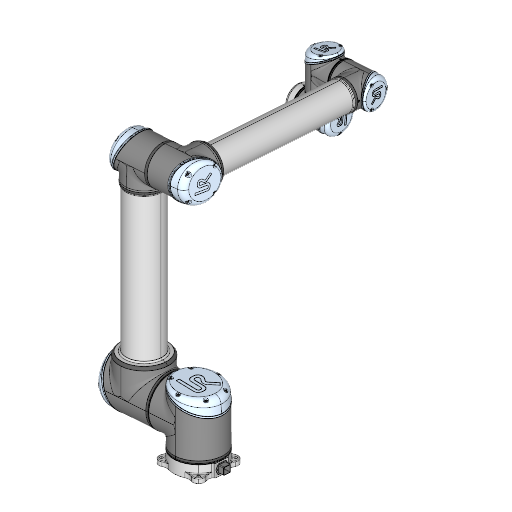

3D View

What are the technology applications of UR10 (Alternative)?

UNIVERSAL UR10 (Alternative) is a versatile robot suitable for a wide range of industrial applications.

Primary applications of UNIVERSAL UR10 (Alternative): Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

UNIVERSAL UR10 (Alternative) applications programmed with ENCY Robot

Pick and place

Polishing

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase UNIVERSAL UR10 (Alternative) or request a quote, please contact the manufacturer or an authorized local supplier.
