Custom Components for Automated Valve Lines

Technique Highlights
Thanks to Lavorazioni Meccaniche CS for sharing a look at custom-machined parts designed to address unique challenges in automated valve manufacturing. The images feature a series of aluminum and metal components, each displaying complex geometries achieved via multiple CNC milling and turning strategies.

Manufacturing Process Insight

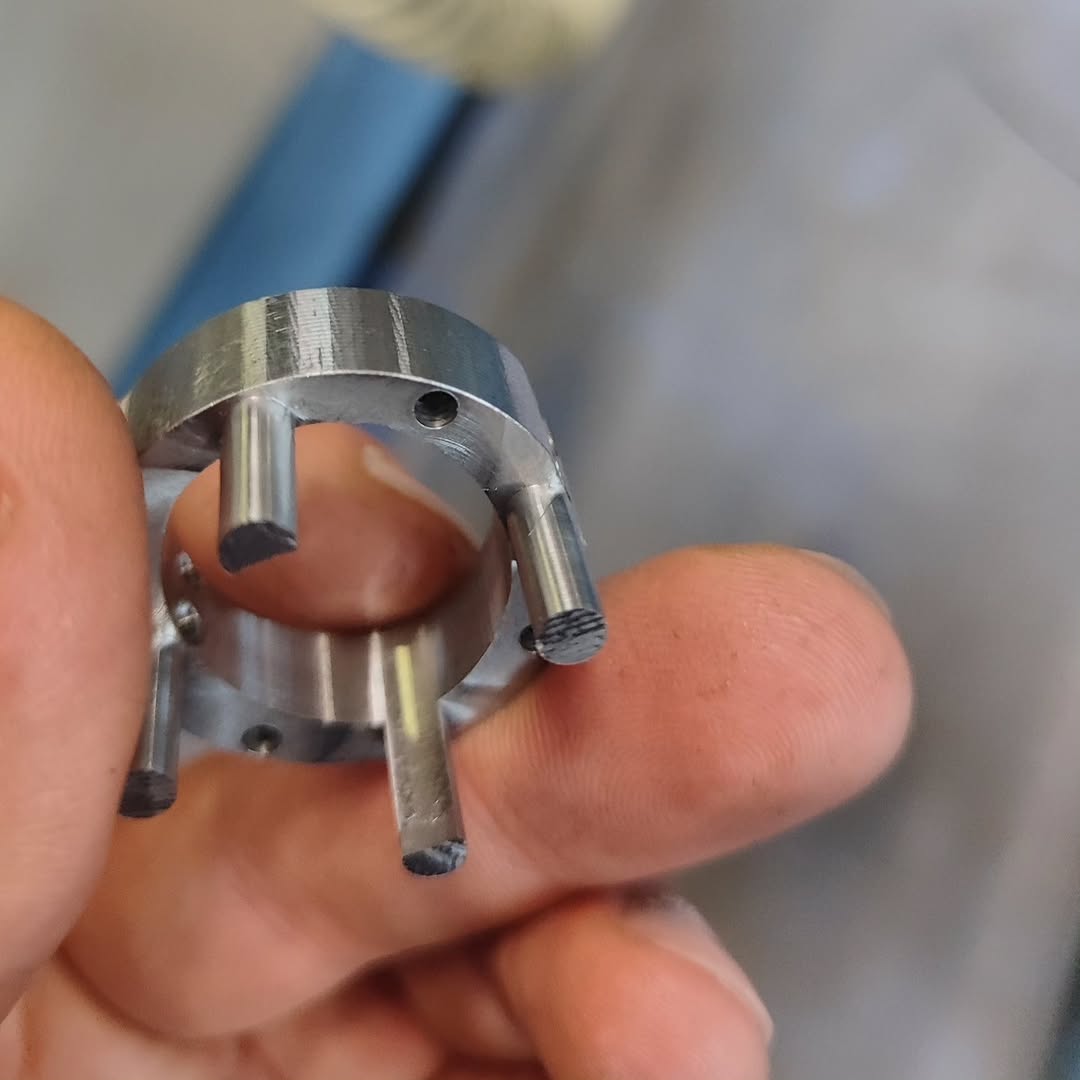

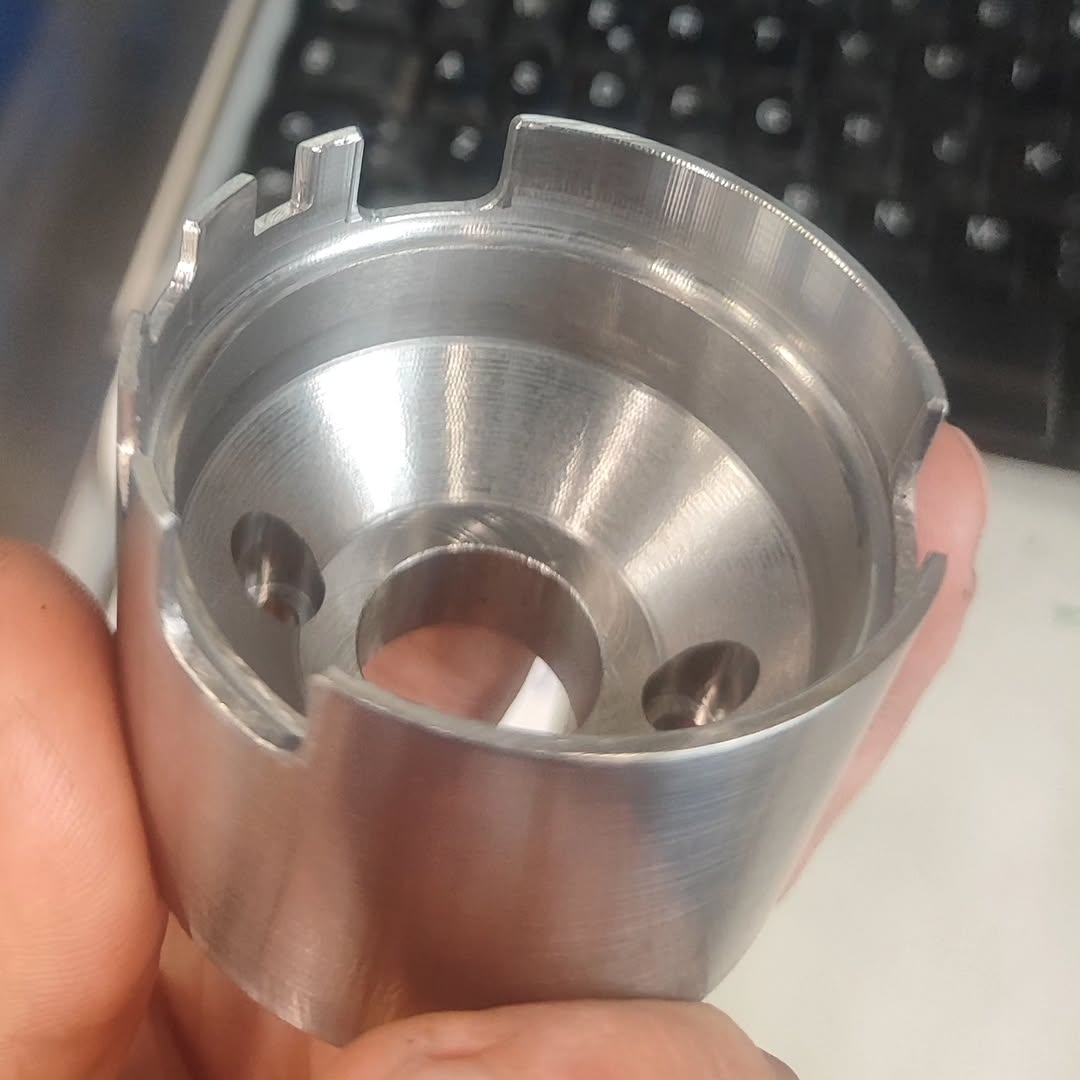

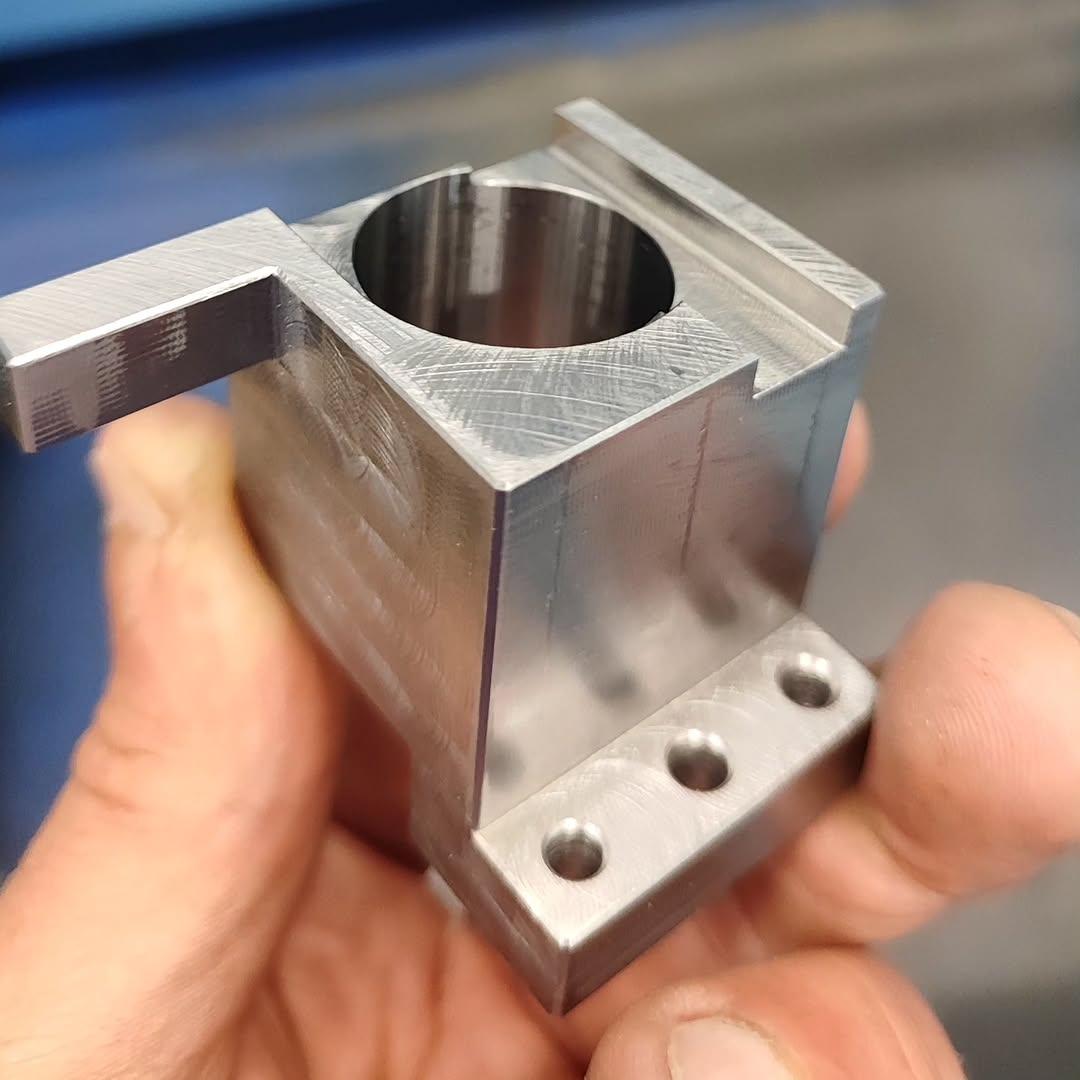

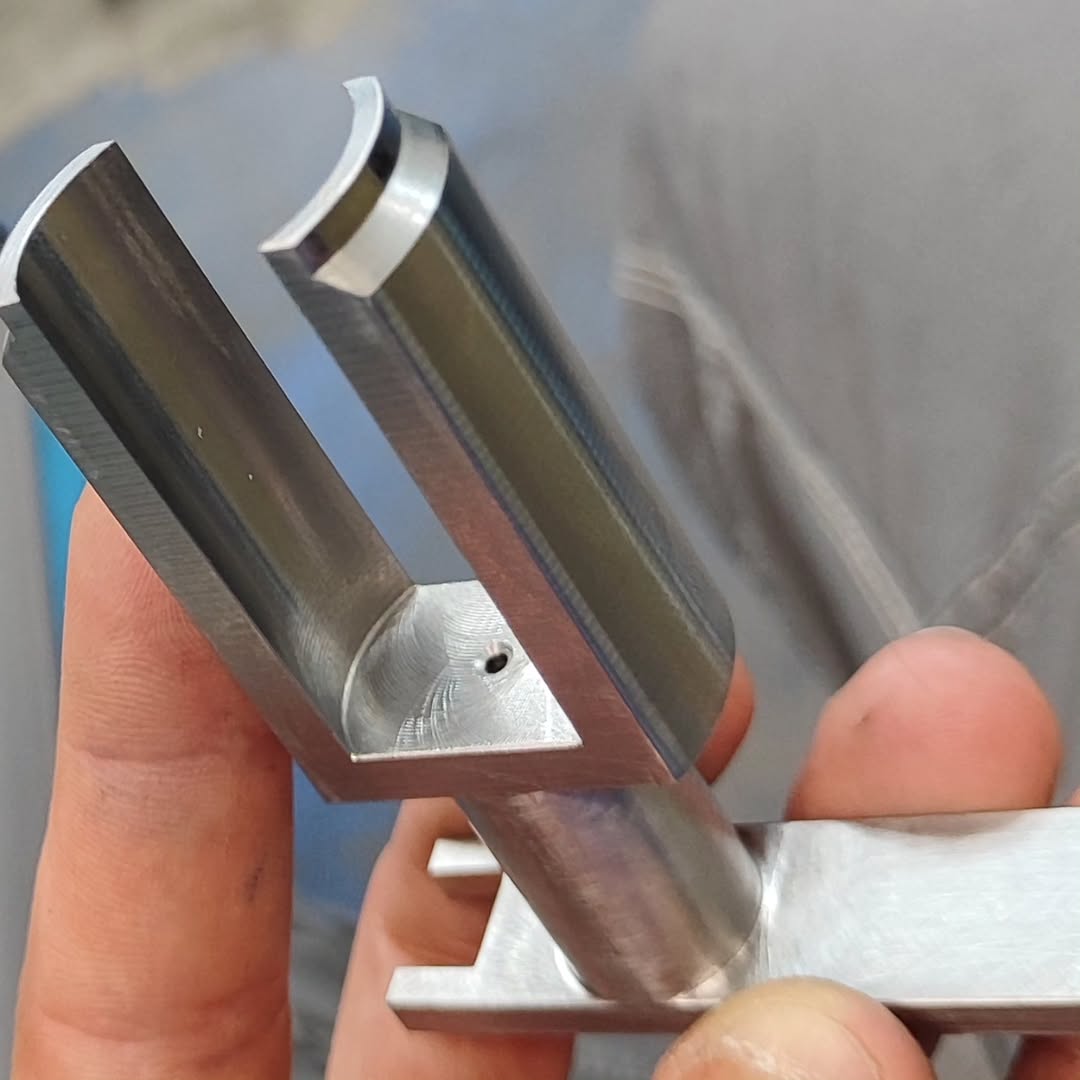

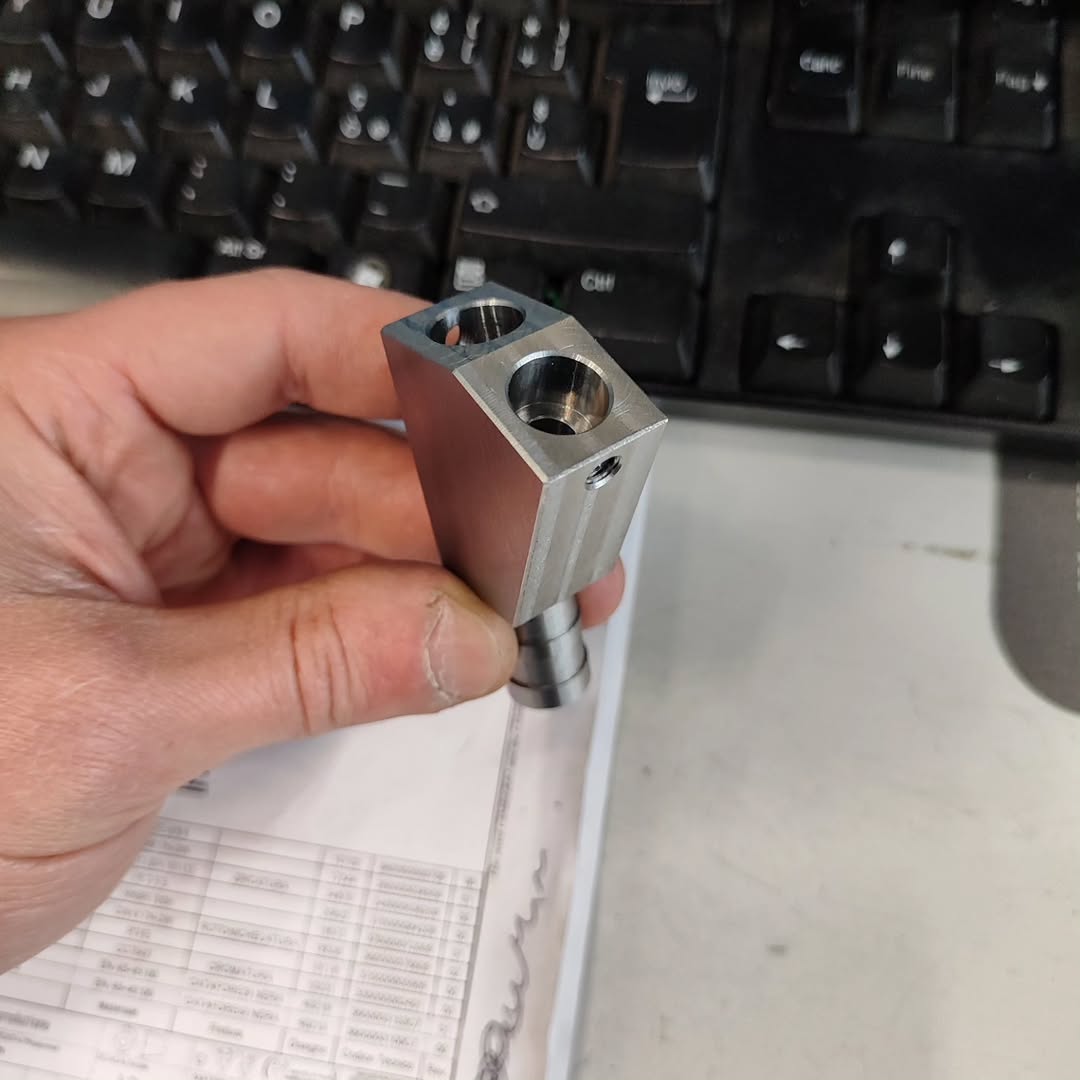

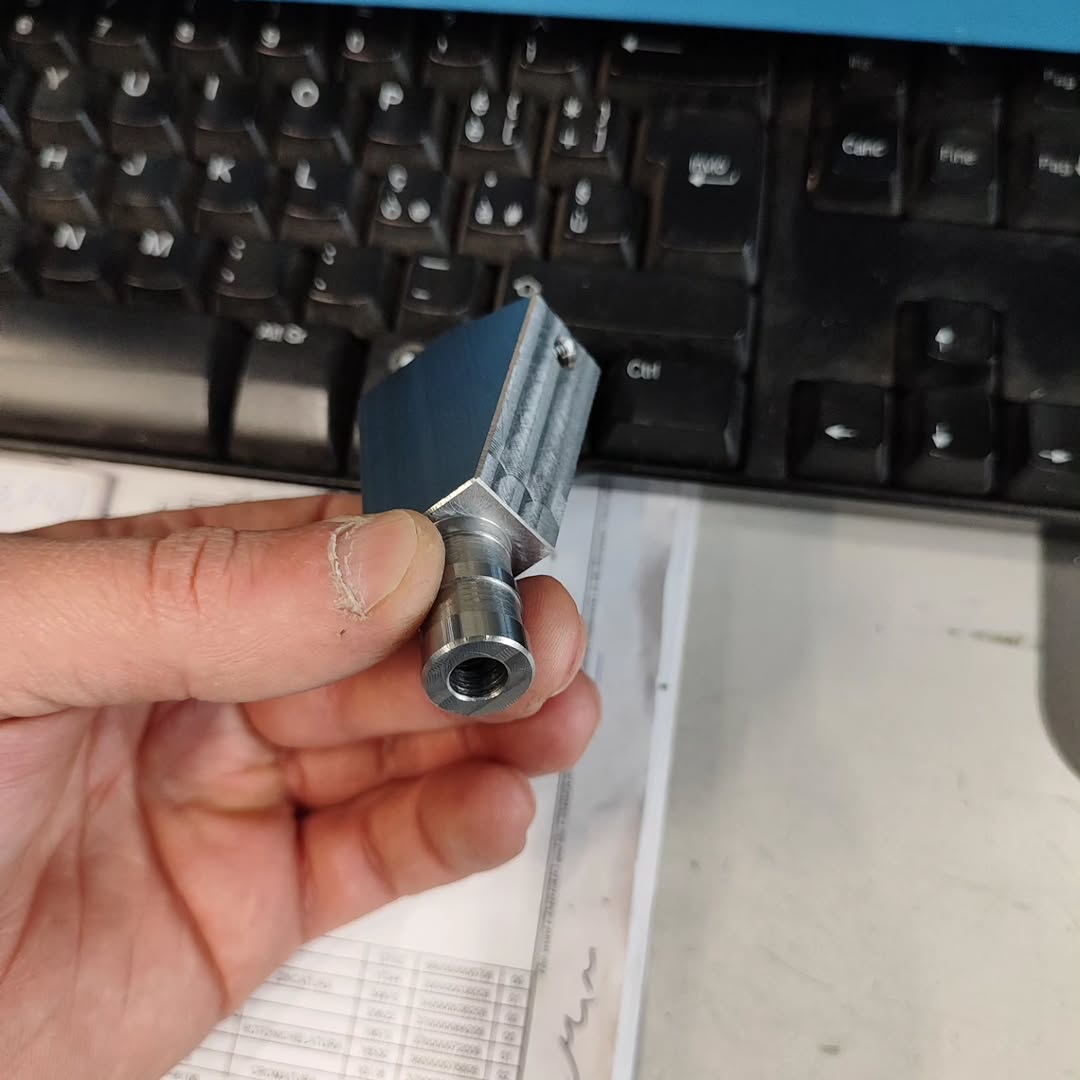

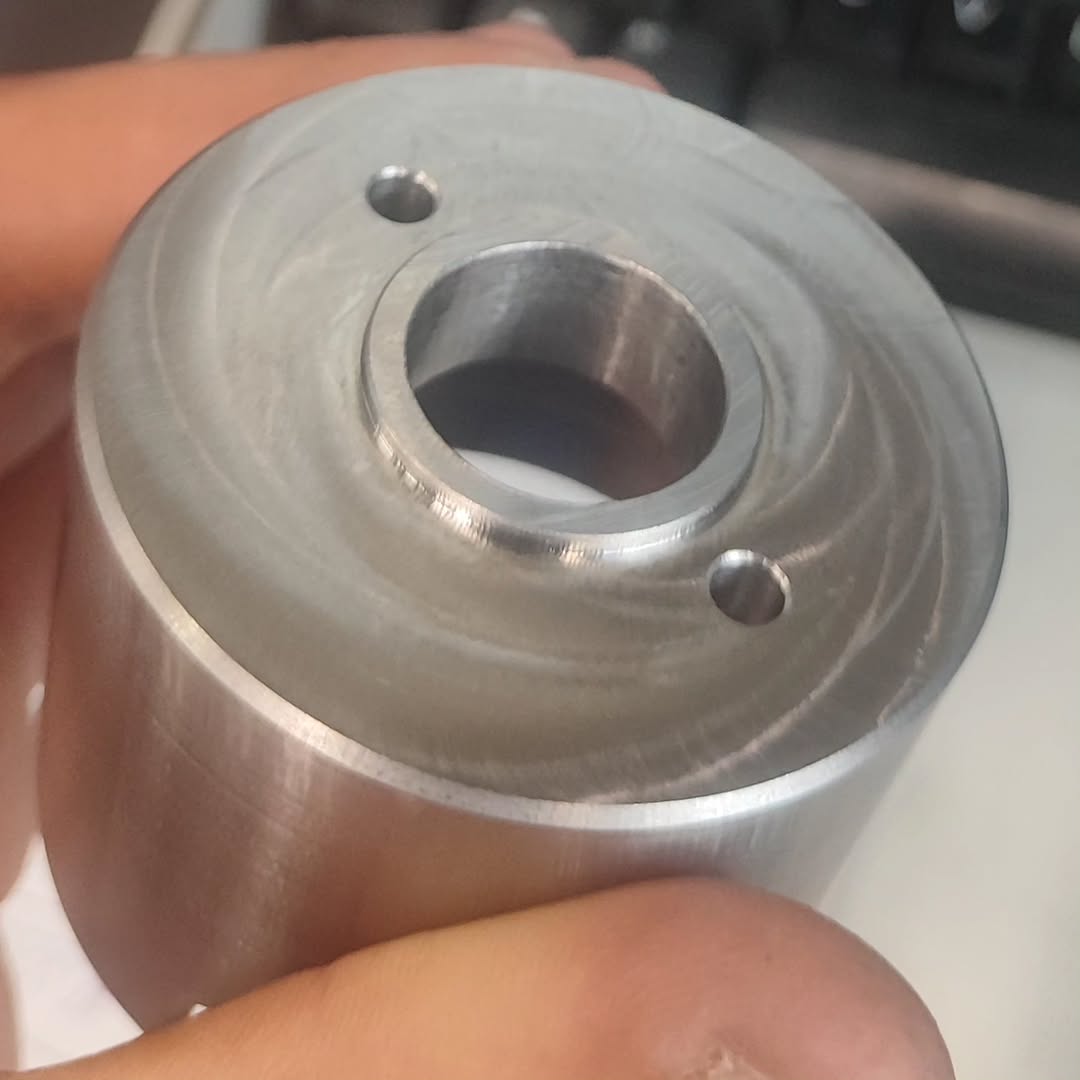

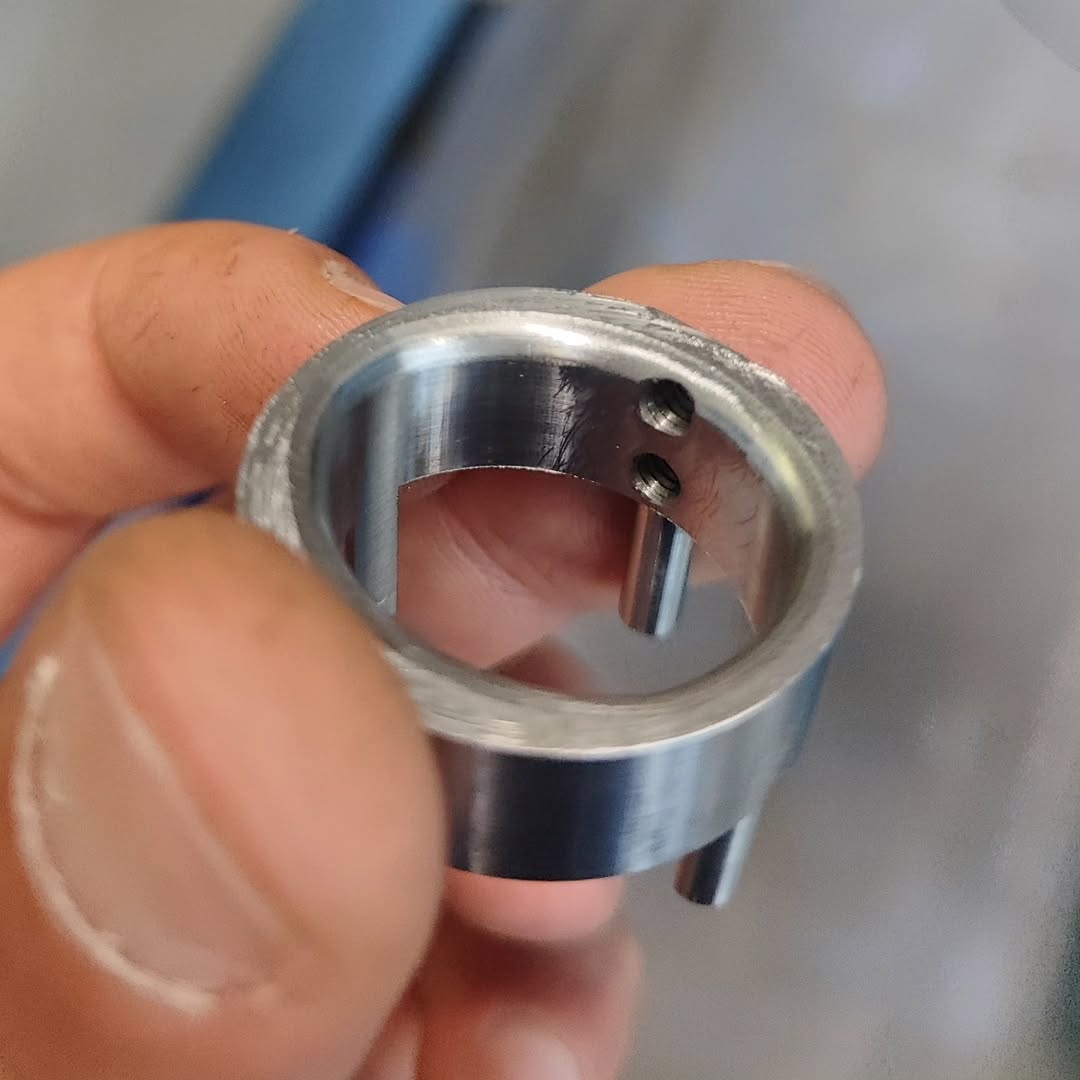

Each part—ranging from milled blocks with cylindrical features to intricate ring-shaped elements—was produced using a combination of 2.5x and 3x milling, lathe, and mill-turn operations. The manual quality checks and visible inspection sheets underscore the attention to detail required in industrial machinery and equipment production.

Software Utilization
These parts were programmed using ENCY CAD/CAM software, enabling precise toolpath control and efficient processing across CNC centers. The versatility of ENCY supports various manufacturing needs in the industrial machinery sector, as shown in these practical use cases.
