From Concept to Injection-Molded Component in Die & Mold Manufacturing

Project Overview by Lavorazioni Meccaniche CS
Thanks to Lavorazioni Meccaniche CS for sharing an end-to-end workflow in modern die & mold manufacturing. Images trace the journey from initial CAD design through CNC milling, sinker EDM, and probing, with each stage precisely documented—from schematic planning to final part measurement.

Workflow Highlights

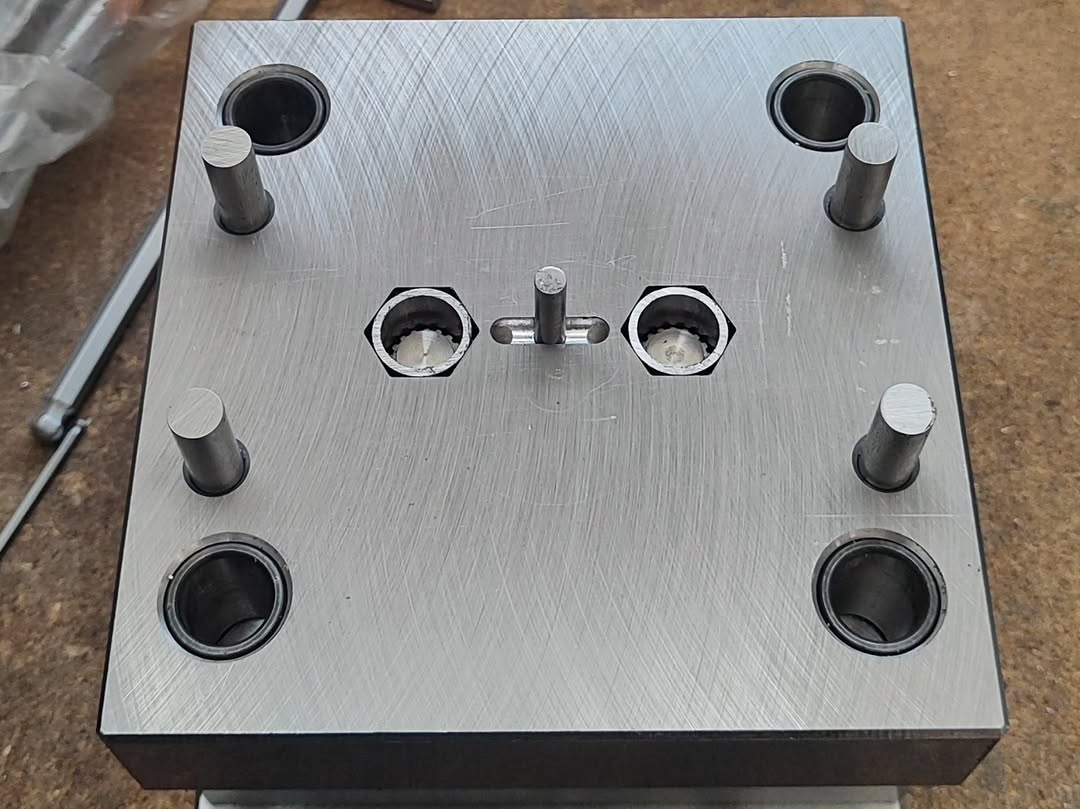

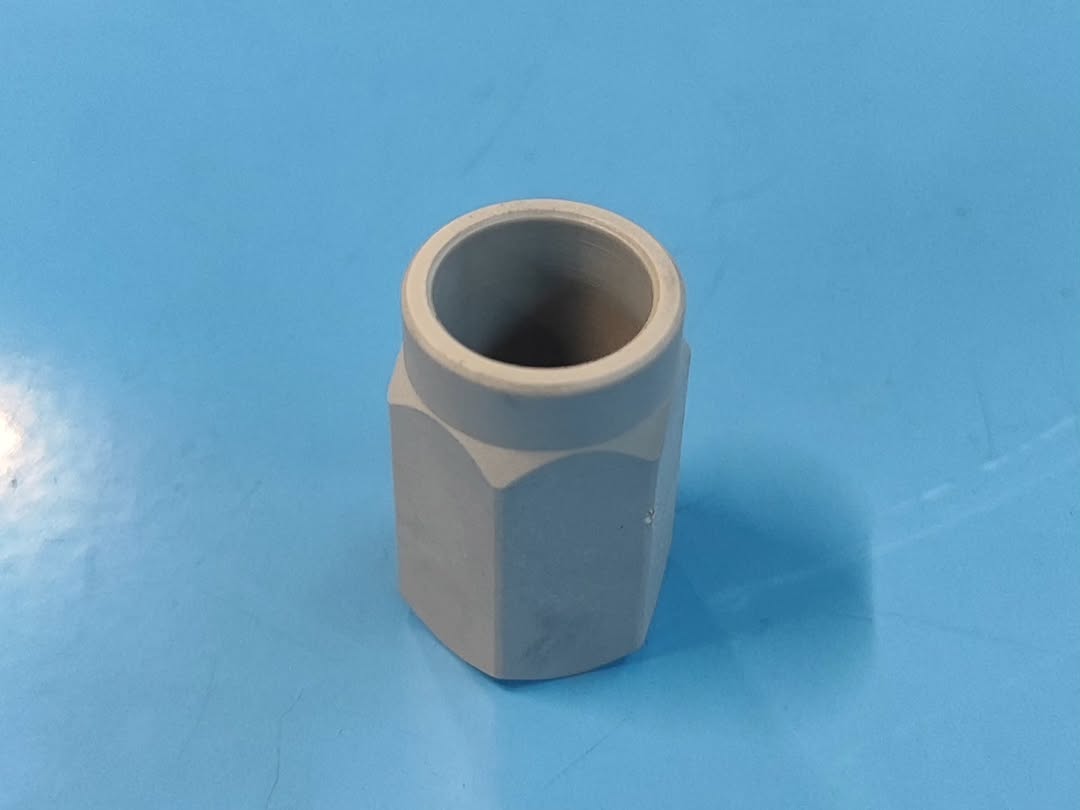

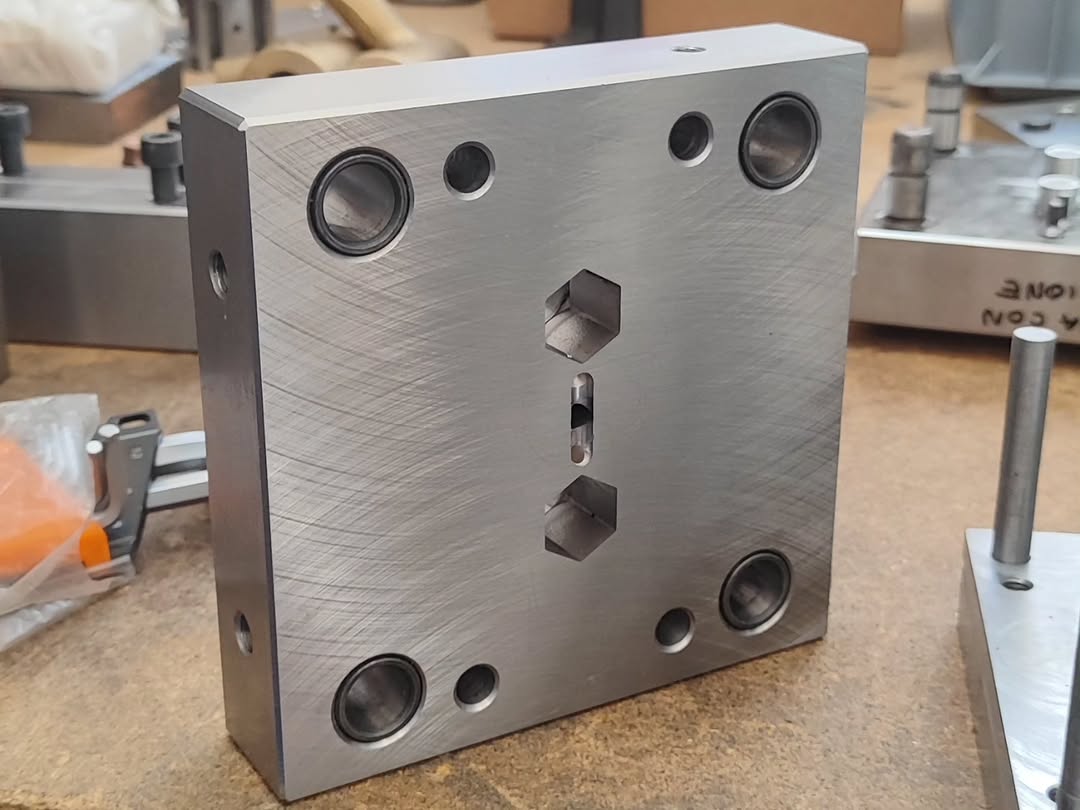

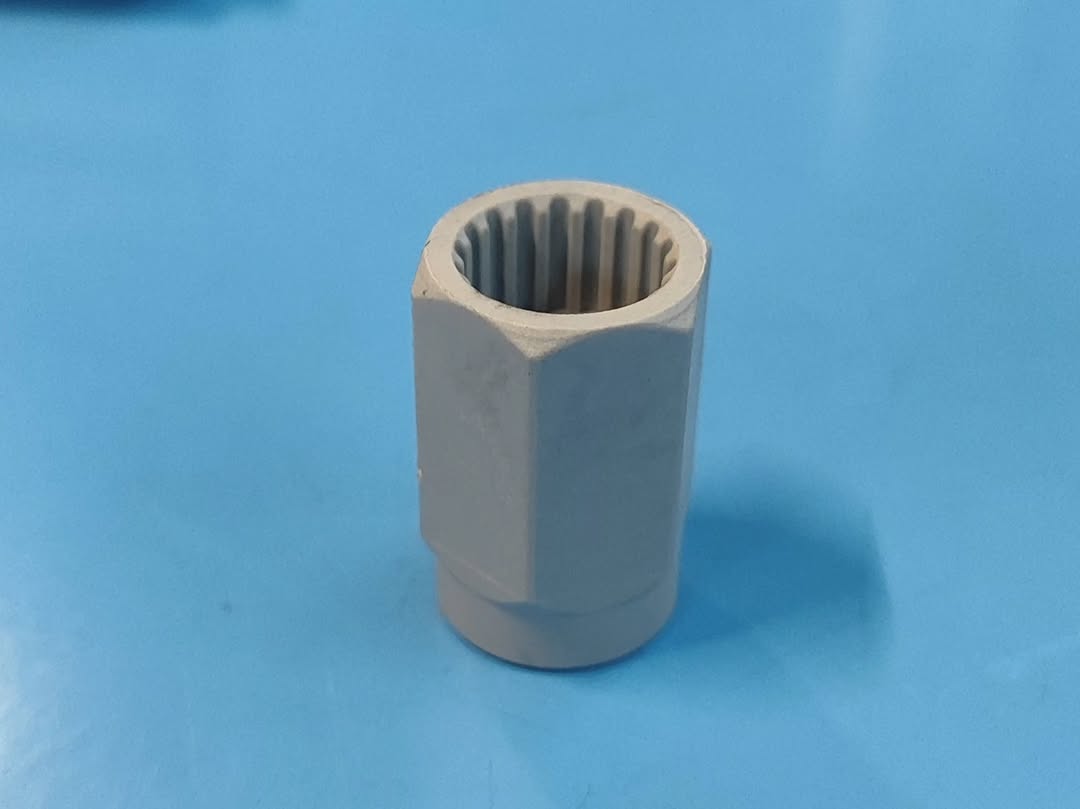

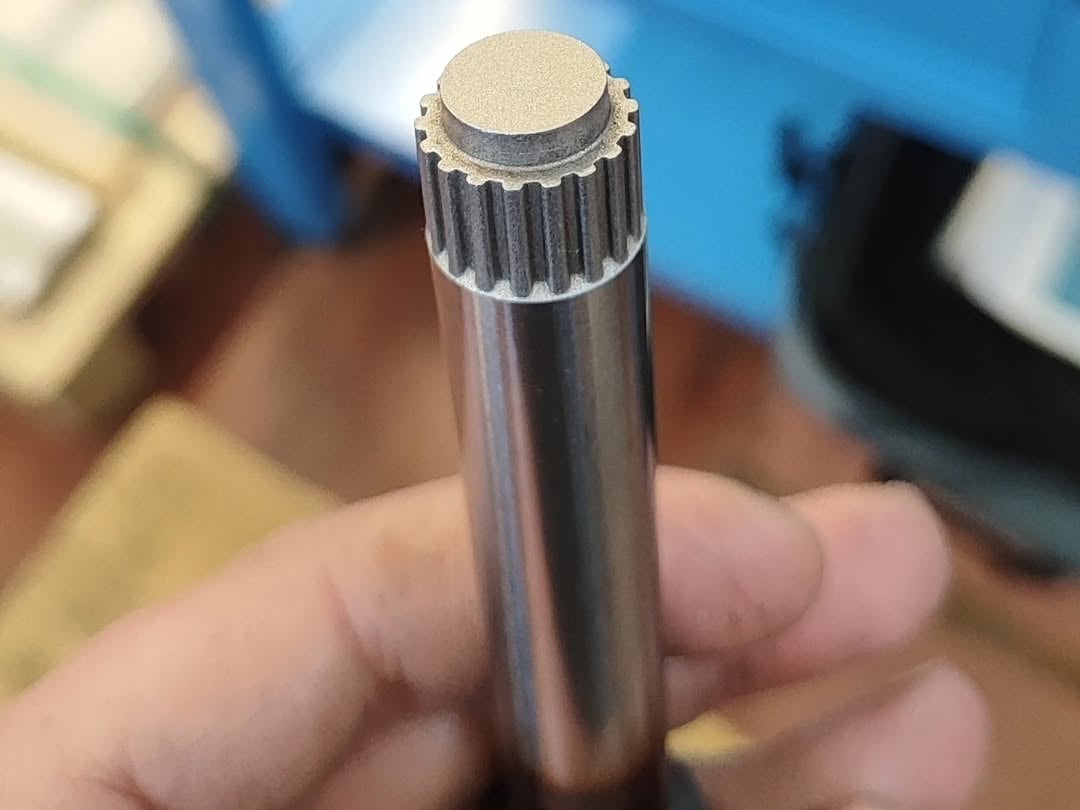

The process begins with CAD modeling and proceeds through mold cavity creation using CNC machining. Sinker EDM refines internal features, as seen with the operator setting electrodes for complex geometries. Probing cycles using a vertical CMM ensure dimensional accuracy for each finished part, supporting repeatable quality.

Application Insights
Here, ENCY CAD/CAM software streamlines key steps for mold construction, electrode preparation, and inspection planning—directly benefiting EDM machining, mill-turn operations, and automated probing cycles in the die & mold sector. Media visuals illustrate each technology in context, showing practical integration across manufacturing stages.
