Mountainous Terrain Sculpture in CNC Machining

Shared by CEARP Mirko Villa, this project exemplifies the intersection of traditional artistry and advanced CNC technology. The creation revolves around a decorative piece replicating the Passo Pordoi, a famous mountainous area, crafted as a personalized gift for mountain enthusiasts Giorgia and Michele.

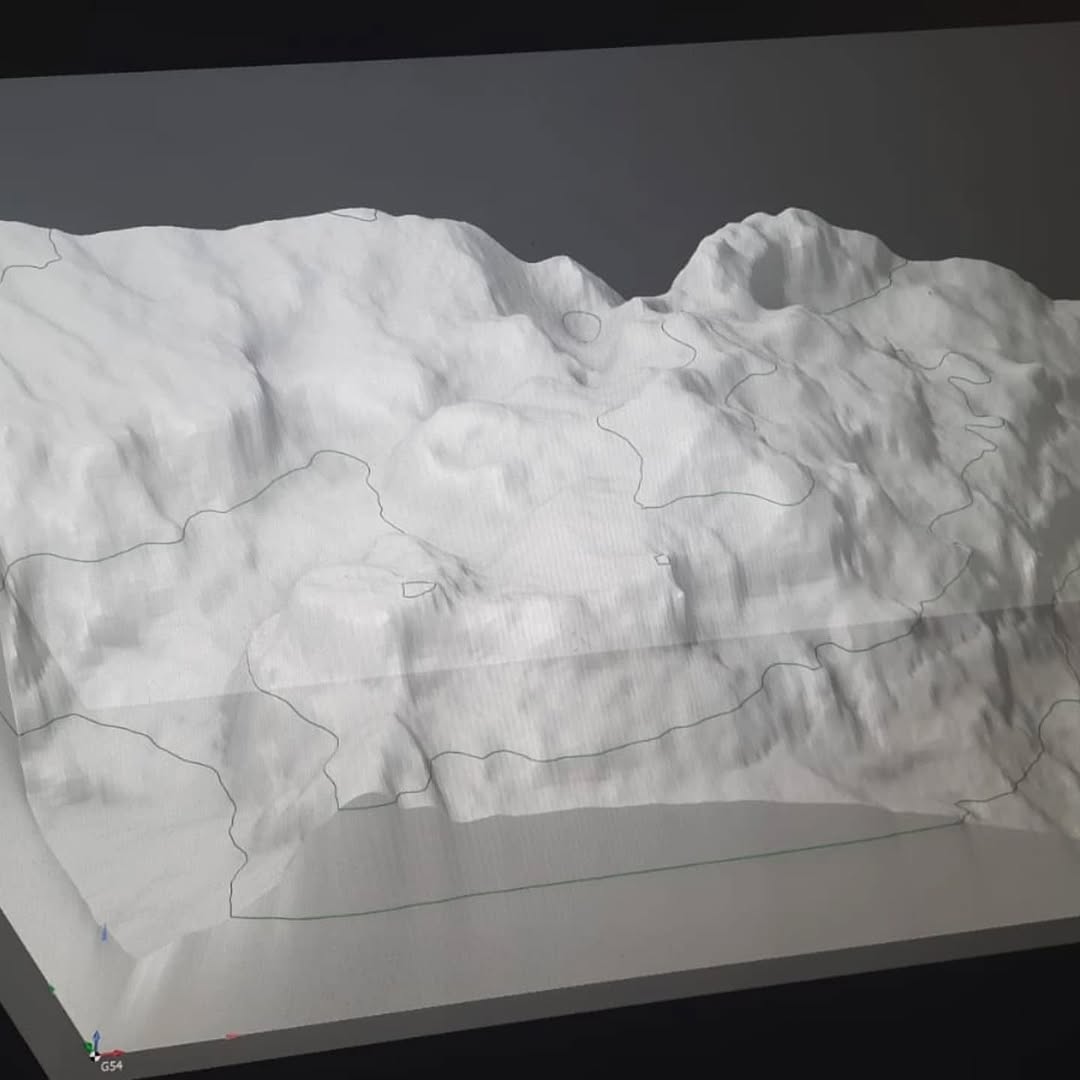

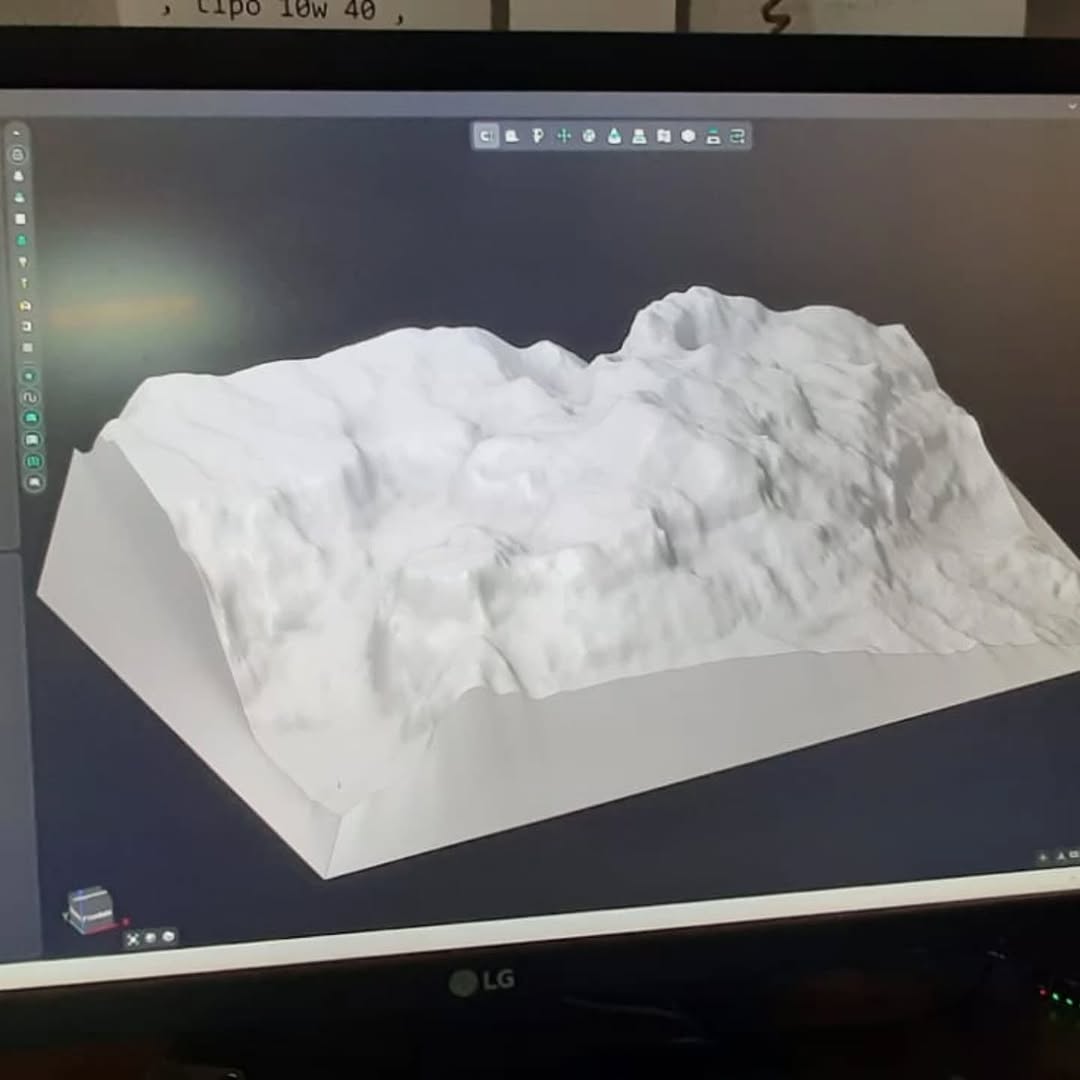

Innovative Use of ENCY CAD/CAM Software: The 3D topographic model, as showcased in the photos, is developed using ENCY CAD/CAM software. This tool plays a crucial role in designing and simulating the precise toolpaths necessary for the CNC milling operations. The interface displays both stock preparation and toolpath simulations for multi-axis processes, ensuring high accuracy and detailed reproduction of the terrain.

Manufacturing Process Insight: The images show the progressive stages of the milling process, from subtractive milling on wood to additive techniques in metalworking. This intricate procedure is enhanced by ENCY's capabilities, facilitating the transition from digital design to tangible art, particularly in the woodworking and arts sectors.

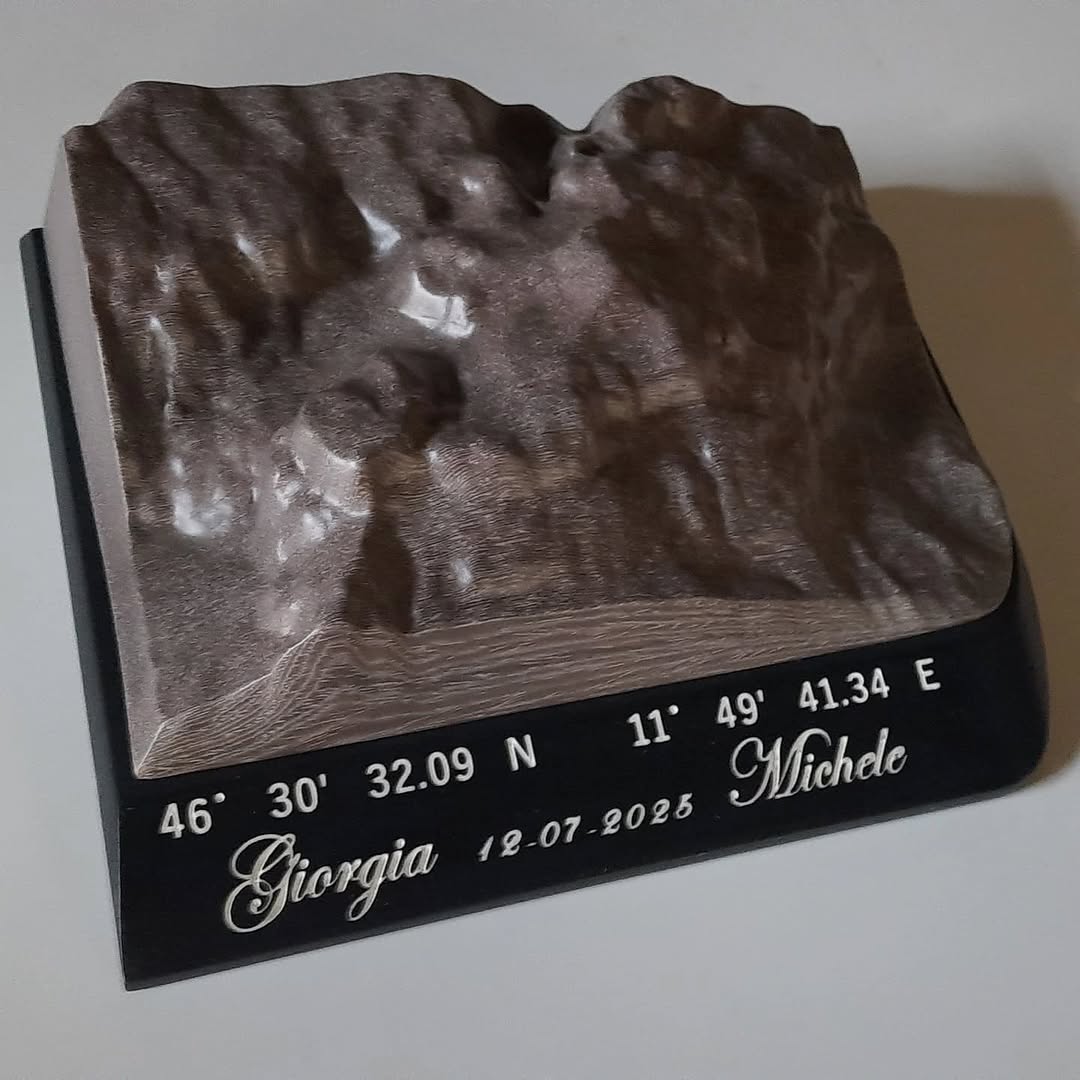

Final Product Representation: The final artistic model is mounted on a custom black base, inscribed with geographical coordinates, names, and significant dates, culminating in a bespoke artistic piece epitomizing precision machining combined with the creativity of sculptural arts.
