Technical Analysis of Die & Mold Prototyping for Cylindrical Housing

Project Overview
Thanks to Lavorazioni Meccaniche CS for sharing this detailed look at the development of a cylindrical housing for die & mold applications. Images and video show the progression from 3D CAD design and digital inspection to prototype production, highlighting the methods used in both 2.5x and 3x milling environments typical to this industry.

CAD/CAM Workflow

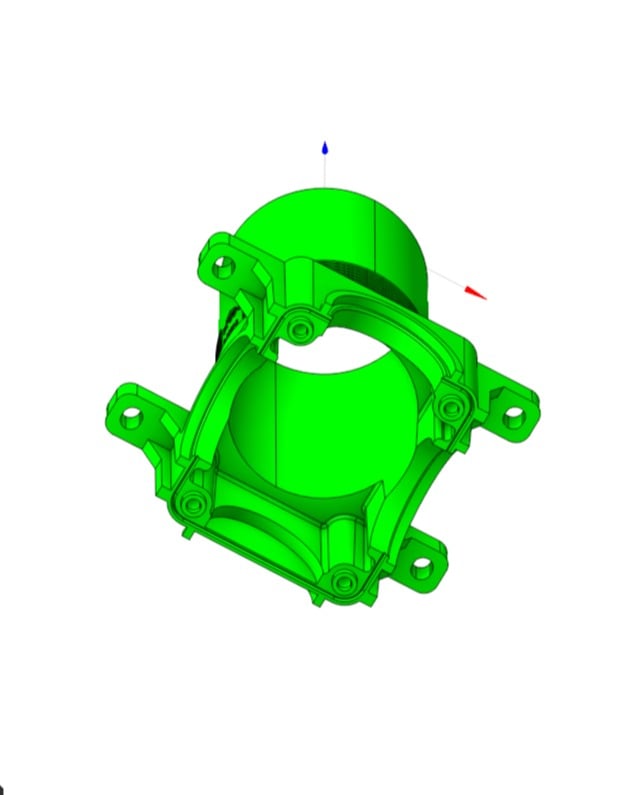

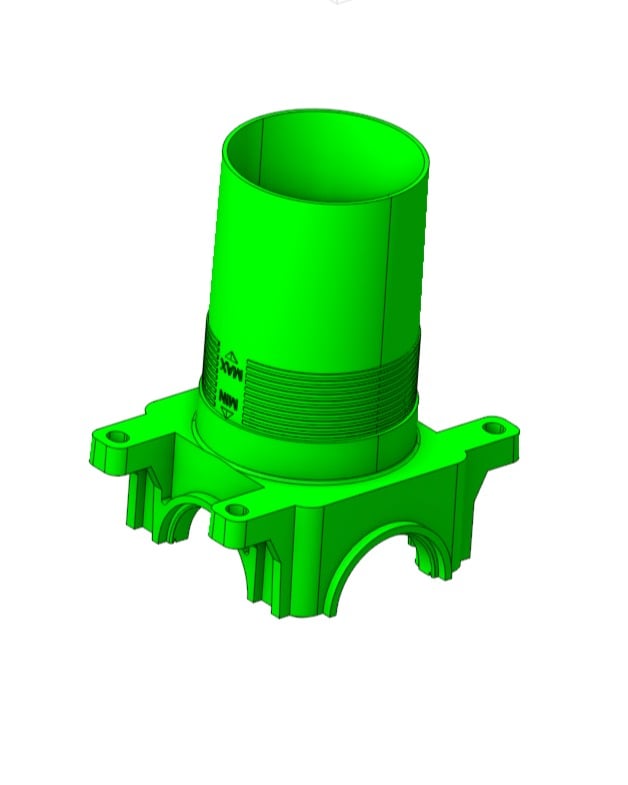

The featured media demonstrates ENCY CAD/CAM software in action, from initial CAD modeling—which includes detailed thread profiles and mounting features—to toolpath setup and thorough digital validation. The interface enables rapid adjustment and analysis of the housing design, helping to ensure manufacturability and readiness for CNC milling.

Prototyping and Technical Insight

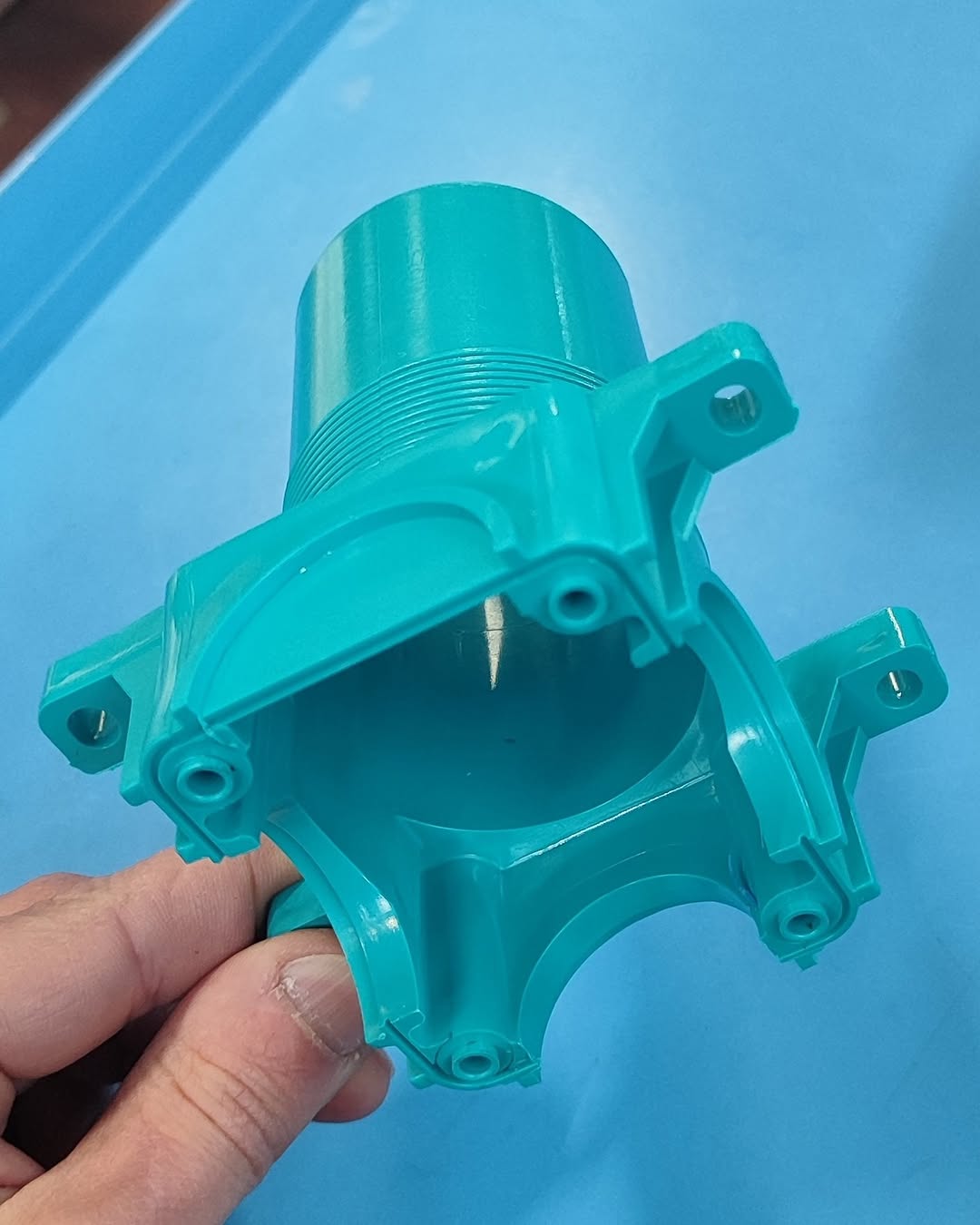

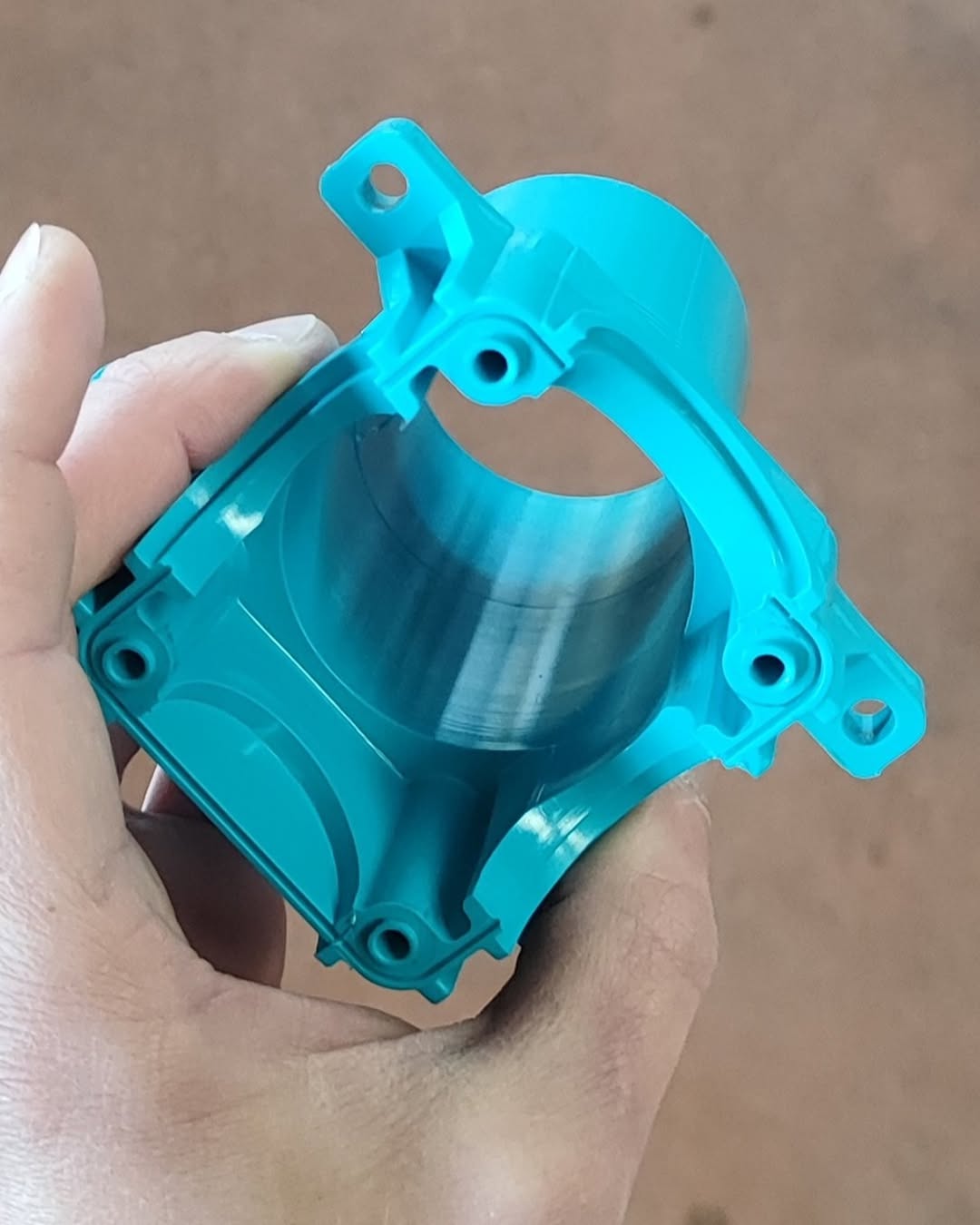

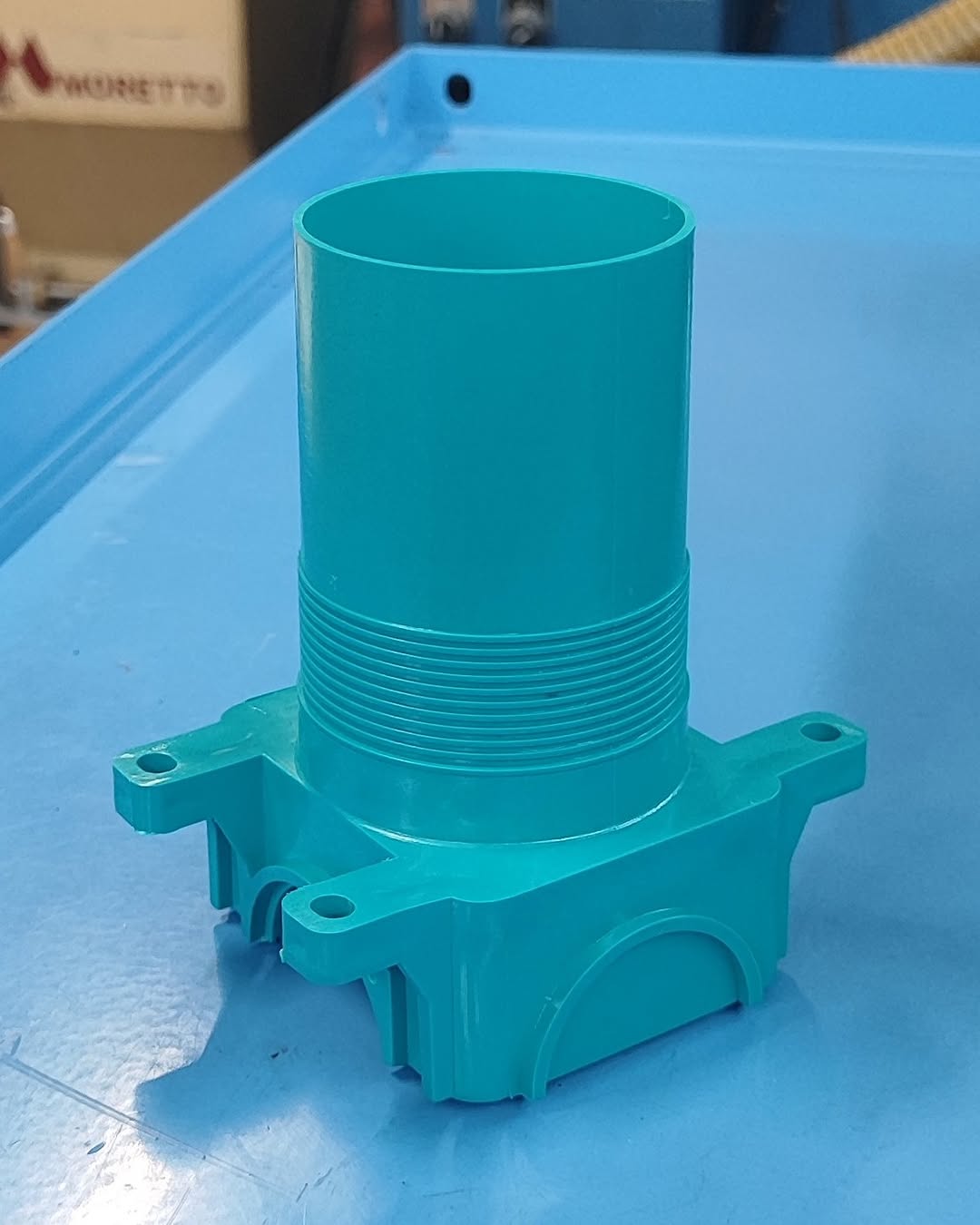

Physical prototypes, as seen in the photos, illustrate the quality of the finished polymer components—showcasing both digital planning and tangible results. The process also includes technical analysis of injection molds, emphasizing the alignment of mold halves and ejection systems critical in die & mold manufacturing workflows.
