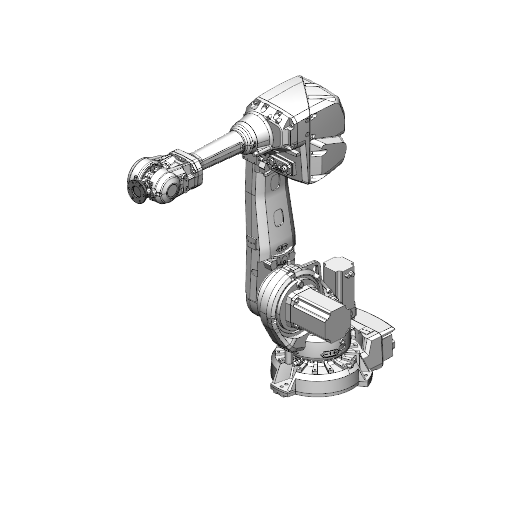

ABB IRB 4600 45/2.05

Industrial Robot ABB IRB 4600 45/2.05

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 4600 45/2.05

Axes

6

Payload

45 kg

Reach

2050 mm

Repeatability

0.050 mm

Weight

425 kg

IP rating

IP67

Mounting orientation

Floor, Semi-shelf, Tilted, Inverted (up to 15° around Y-axis)

Controller

IRC5 (Single or Dual Cabinet); also OmniCore V250XT in some offerings

Power supply

200-600 V AC, 50/60 Hz

Power consumption

1.43 kW

Certifications

CE, ISO 10218-1, compliance with Machinery Directive 2006/42/EC

Cleanroom class

ISO 14644-1 Class 5 (for cleanroom versions, 40 & 60 kg variants)

Safety functions

Protective stop; emergency stop; external safety device interface; built-in safety-certified stopping functions

Communication interfaces

Customer power, customer signals; Ethernet; DeviceNet; PROFIBUS; Parallel I/O

Download ABB IRB 4600 45/2.05 digital twin

Start for free
The ABB IRB 4600 45/2.05 is a versatile industrial robot designed for high-performance automation tasks, featuring six axes and a payload capacity of 45 kg. With a reach of 2050 mm and a repeatability of 0.050 mm, this robotic solution offers exceptional precision and flexibility, supporting multiple mounting orientations including floor and tilted configurations. Equipped with an IRC5 controller and capable of operating in cleanroom environments up to ISO 14644-1 Class 5, the ABB IRB 4600 ensures compliance with industry safety standards while delivering robust communication options such as Ethernet and DeviceNet.
3D View

What are the technology applications of IRB 4600 45/2.05?

ABB IRB 4600 45/2.05 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 4600 45/2.05:Deburring, Grinding, Machine Tending, Multiaxis cutting, Robot welding. But we recommend to consult with your robot supplied or the manufacturer.
