ABB IRB 6760-200/3.2

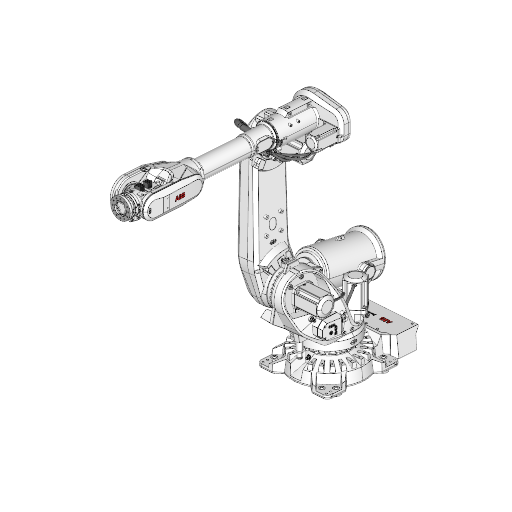

Industrial Robot ABB IRB 6760-200/3.2

Specifications

Type

Industrial Robot

Brand

ABB

Model

IRB 6760-200/3.2

Axes

6

Payload

200 kg

Reach

3200 mm

Repeatability

0.06 mm

Weight

1480 kg

IP rating

IP67 (option: Foundry Plus)

Operating temperature range

+5 to +50 °C (mechanical unit during operation), +5 to +35 °C during high-speed press tending; storage: −25 to +55 °C (short up to +70 °C for max 24 h)

Mounting orientation

Floor

Controller

OmniCore V250XT/V400XT

Power supply

380-480 VAC, 50/60 Hz

Power consumption

3200 W

Certifications

EMC/EMI-shielded

Safety functions

Double circuits with supervision; emergency stops; 3-position enable device; SafeMove

Download ABB IRB 6760-200/3.2 digital twin

Start for free
The ABB IRB 6760-200/3.2 is a high-performance industrial robot designed for various automation applications. With six axes, it offers a payload capacity of 200 kg, a reach of 3200 mm, and a repeatability of 0.06 mm, making it ideal for precise tasks. Designed to operate in diverse environments, this robust robot features an IP67 rating, operates efficiently within a temperature range of +5 to +50 °C, and is equipped with the advanced OmniCore V250XT/V400XT controller for optimal performance.
3D View

What are the technology applications of IRB 6760-200/3.2?

ABB IRB 6760-200/3.2 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of ABB IRB 6760-200/3.2:Deburring, Grinding, Multiaxis cutting, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

ABB IRB 6760-200/3.2 applications programmed with ENCY Robot

A robotic arm is preparing to cut a green-topped object.

Multiaxis cutting

A robotic arm is milling the surface of a boat hull.

Robot Milling

Frequently asked questions

Can ABB IRB 6760-200/3.2 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase ABB IRB 6760-200/3.2 or request a quote, please contact the manufacturer or an authorized local supplier.
