AUCTECH X25-1800

Specifications

Type

Cobot

Brand

AUCTECH

Model

X25-1800

Axes

Payload

25 kg

Reach

1800 mm

Repeatability

0.05 mm

Weight

61.6 kg

Speed at rated payload

1.5 m/s

IP rating

IP54/IP65

Operating temperature range

-10 to 50 °C

Mounting orientation

Any Direction

Controller

Latest AUCTECH Controller (fully compatible with multiple robot series; compact size, supports human-robot collaboration)

Power supply

220-240VAC 47-63Hz 10A / 100-200VAC 47-63Hz 16A

Power consumption

600 W

Tool flange

GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1)

Certifications

TÜV certified safety functions; CE

Safety functions

16 TUV certified safety functions such as collision detection, force and power monitoring

Communication interfaces

DI, DO, AI/O external interfaces; cloud robot data monitoring; remote OTA upgrade; external interface support (DI, DO, AI/O, etc.)

Download AUCTECH X25-1800 digital twin

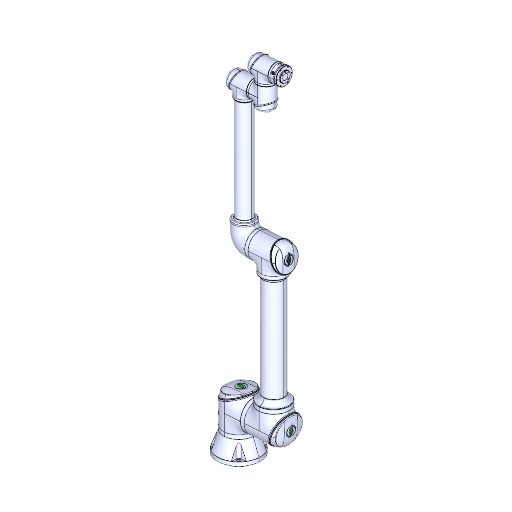

The Cobot AUCTECH X25-1800 is a state-of-the-art industrial automation component designed for flexibility and precision with its 6 axes, capable of handling a payload of 25 kg and a reach of 1800 mm. With a remarkable repeatability of 0.05 mm and a maximum speed of 2.5 m/s, this cobot excels in demanding environments while operating efficiently across a temperature range of -10 to 50 °C. Its robust design features an IP54/IP65 rating and incorporates advanced safety functions, ensuring reliable performance in various applications.

What are the technology applications of X25-1800?

AUCTECH X25-1800 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of AUCTECH X25-1800:Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

AUCTECH X25-1800 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot Milling

Frequently asked questions

Can AUCTECH X25-1800 be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

How can I start programming AUCTECH X25-1800 with ENCY Robot?

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

It is possible to install a free version of ENCY Robot and start programming AUCTECH X25-1800 with it?

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

How to buy ENCY Robot?

If you would like to purchase ENCY, please contact us for a quote.

Can I purchase AUCTECH X25-1800 and get its price from your company?

No. We do not sell robots and do not provide pricing information. To purchase AUCTECH X25-1800 or request a quote, please contact the manufacturer or an authorized local supplier.
