AUCTECH X5-910

Cobot

AUCTECH6 axesDigital twin for ENCY Robot

About

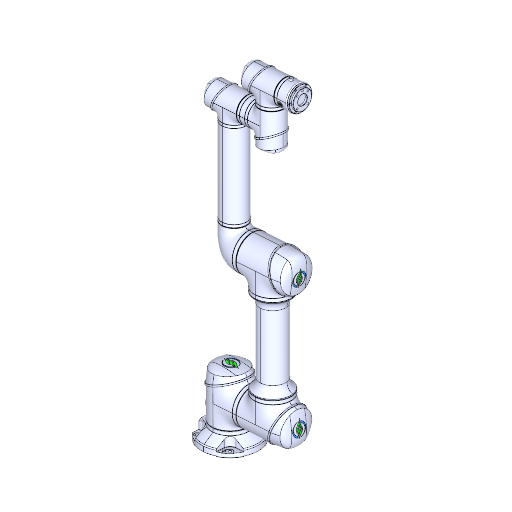

The Cobot AUCTECH X5-910 is a versatile 6-axis robotic arm designed for industrial automation, capable of handling payloads up to 5 kg with a reach of 917 mm. With a repeatability of ±0.02 mm and a maximum speed of 3.6 m/s, it operates efficiently within a temperature range of -10 to 45 °C while offering IP54/IP65 protection for dust and water resistance. Equipped with AUCTECH’s advanced X-Series controller, the X5-910 supports seamless human-robot collaboration and features TÜV certified safety functions, making it an ideal solution for various applications in the manufacturing sector.

What are the technology applications of X5-910?

AUCTECH X5-910 is a versatile robot suitable for a wide range of industrial applications. Primary applications of AUCTECH X5-910: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

AUCTECH X5-910 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase AUCTECH X5-910 or request a quote, please contact the manufacturer or an authorized local supplier.

Download AUCTECH X5-910 digital twin

Start for free

Specifications

General

Type: Cobot
Brand: AUCTECH
Model: X5-910
Axes: 6

Performance

Payload: 5 kg
Reach: 917 mm
Repeatability: 0.02 mm
Weight: 26 kg
Maximum speed: 3.6 m/s
Speed at rated payload: 1.5 m/s

Environment

IP rating: IP54/IP65
Operating temperature: -10 to 45 °C
Mounting orientation: Installed in any Direction

Integration

Controller: AUCTECH’s latest X-Series controller (compact, compatible with multiple robot series and supports human-robot collaboration)
Power supply: 100-240 VAC, 47-63 Hz, 10 A
Power consumption: 200 W
Tool flange: GB/T 14468.1-50-4-M6 (equivalent ISO 9409-1)
Communication interfaces: DI, DO, AI/O; End-Joint I/O: 2 Digital I/O, 24 V, 0.6 A
Safety functions: 16 TÜV certified safety functions including collision detection, force and power monitoring, enabling human robot collaboration
Certifications: TÜV safety certified functions; CE marking
