Industrial Robot DENSO VM60B1 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Denso

Model

VM60B1

Axes

Payload

13 kg

Reach

1298 mm

Repeatability

0.070 mm

Weight

82 kg

Maximum speed

8300 mm/sec

Speed at rated payload

8300 mm/sec

IP rating

Unit: IP54 / Wrist: IP65 (standard dust & splash proof type) / Cleanroom type equivalent to standard with wrist IP65 and unit IP54

Mounting orientation

Floor-mounted, Floor-overhead-mounted (Cleanroom model is floor-mounted only)

Controller

RC8 series

Power supply

Three-phase AC200-240V or Single-phase AC230V, 50/60Hz

Power consumption

3250 W

Tool flange

4-M6, depth 9 (tool mounting face interface)

Certifications

ANSI, CE compliance; other conformity standards per owner’s manual set (UL where applicable)

Cleanroom class

Class 100 (ISO 5)

Safety functions

Emergency Stop, Protective Stop, Auto Enable circuits; safety circuits wired via Mini-I/O cable

Communication interfaces

Ethernet (GbE), RS-232C, 2×USB; optional: PROFIBUS, PROFINET IO Device, DeviceNet, EtherCAT slave, CC-Link remote board

The DENSO VM60B1 is a high-performance industrial robot featuring six axes and a payload capacity of 13 kg, designed for precision and efficiency in various applications. With a reach of 1298 mm and a repeatability of just 0.070 mm, this robot can achieve maximum speeds of 8300 mm/sec, making it ideal for fast-paced environments. The unit is robust with an IP54 rating and an IP65 rating for its wrist, ensuring reliable operation in both standard and cleanroom settings, compliant with Class 100 (ISO 5) standards.

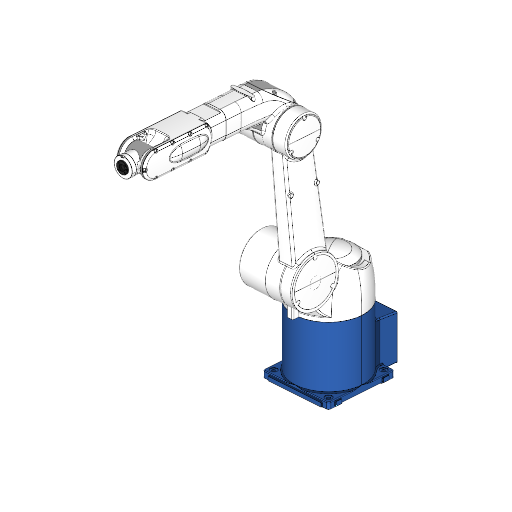

3D View

What are the technology applications of VM60B1?

DENSO VM60B1 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of DENSO VM60B1: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
