DENSO VS-050

Industrial Robot

Denso6 axesDigital twin for ENCY Robot

About

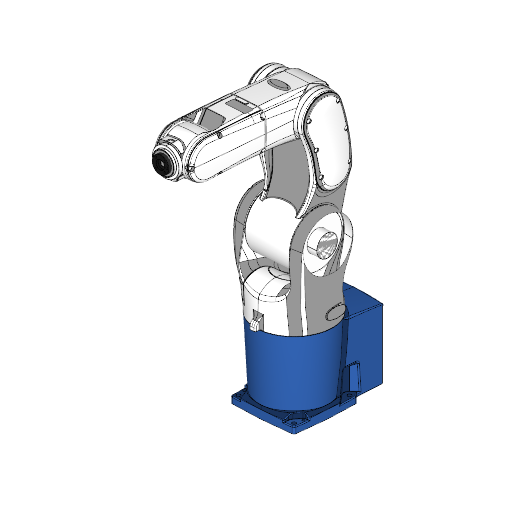

The DENSO VS-050 is a high-performance industrial robot designed for versatile automation tasks, featuring six axes and a payload capacity of 4 kg. With a reach of 605 mm and exceptional repeatability of 0.020 mm, this 29 kg robot operates at a maximum speed of 9080 mm/s, making it ideal for precision applications. The VS-050 accommodates various mounting orientations and offers robust protection with an IP rating range from IP40 to IP67, ensuring reliable performance in diverse environments, including cleanrooms classified as ISO Class 5 or better.

What are the technology applications of VS-050?

DENSO VS-050 is a versatile robot suitable for a wide range of industrial applications. Primary applications of DENSO VS-050: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.

DENSO VS-050 applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase DENSO VS-050 or request a quote, please contact the manufacturer or an authorized local supplier.

Download DENSO VS-050 digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Denso
Model: VS-050
Axes: 6

Performance

Payload: 4 kg
Reach: 605 mm
Repeatability: 0.020 mm
Weight: 29 kg
Maximum speed: 9080 mm/s
Speed at rated payload: 9000 mm/s

Environment

IP rating: Standard: IP40; Protected type: IP67; Dust & splash proof type: wrist IP65 / unit IP54
Mounting orientation: Floor-mounted, Wall-mounted, Ceiling-mounted
Cleanroom class: ISO Class 5 (also options for ISO Class 3)

Integration

Controller: RC8 (also compatible with RC7)
Power supply: Three-phase AC 200V-230V 50/60Hz or Single-phase AC 230V 50/60Hz
Tool flange: Communication flange-A (optional) 17-wire signal cable + Ethernet port; end-effector mounting face
Communication interfaces: LAN ×1 (1000BASE-T); optional signal lines to flange; embedded wiring to flange
Safety functions: Emergency stop / Protective stop; safety board / safety box; stop category per standards
Certifications: CE, UL, (options include ATEX, ESD protection for cleanroom/protected types)
