EPSON C4-B601C

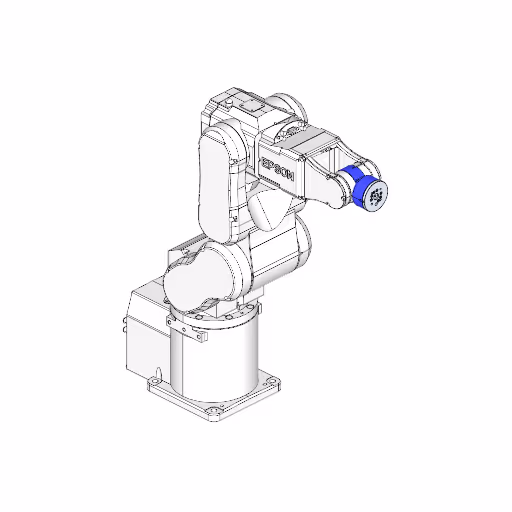

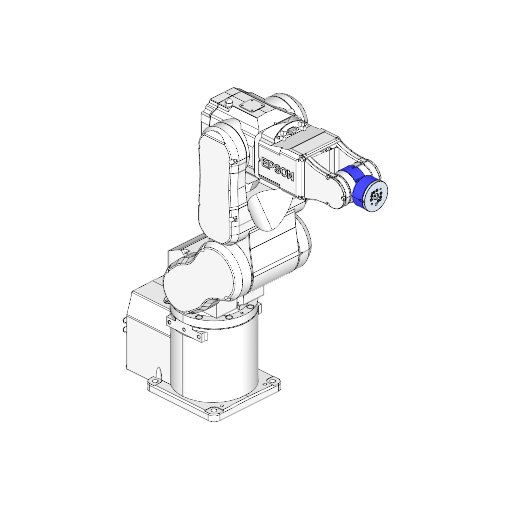

Industrial Robot EPSON C4-B601C

Specifications

Type

Industrial Robot

Brand

Epson

Model

C4-B601C

Axes

6

Payload

4 kg

Reach

600 mm

Repeatability

0.02 mm

Weight

27 kg

Speed at rated payload

450 °/s

IP rating

IP20

Operating temperature range

5 to 40 °C

Mounting orientation

Floor/Tabletop, Ceiling, Wall/Sunken

Controller

RC700-E

Power supply

200-240V AC, Single Phase

Power consumption

1.7 kVA

Certifications

CE (EMC & Machinery Directives), EN ISO 10218-1, UL1740, ANSI/RIA R15.06, CSA Z434, KCs Mark, EMC Directive EN 55011, RoHS Directive

Cleanroom class

ISO 3, ESD

Safety functions

SafeSpeed / SafeZone / Speed & Position Monitoring (SafeSense technology per EN/ISO 13849)

Communication interfaces

Ethernet/IP, EtherCAT, PROFINET, PROFIBUS, CC-Link, DeviceNet; Electric I/O D-Sub 9-pin; Pneumatic Ø4 mm ×4

Download EPSON C4-B601C digital twin

Start for free
The EPSON C4-B601C is a cutting-edge 6-axis industrial robot designed for high precision and efficiency in automation tasks. With a payload capacity of 4 kg and a reach of 600 mm, this robot achieves an impressive repeatability of 0.02 mm and a maximum speed of 720 °/s, making it ideal for a range of applications. Its robust design, suitable for various mounting orientations and equipped with advanced safety functions, ensures reliable operation in environments up to ISO class 3 cleanrooms, while supporting multiple communication interfaces for seamless integration into existing systems.
3D View

What are the technology applications of C4-B601C?

EPSON C4-B601C is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C4-B601C:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.
