EPSON C4-B601S

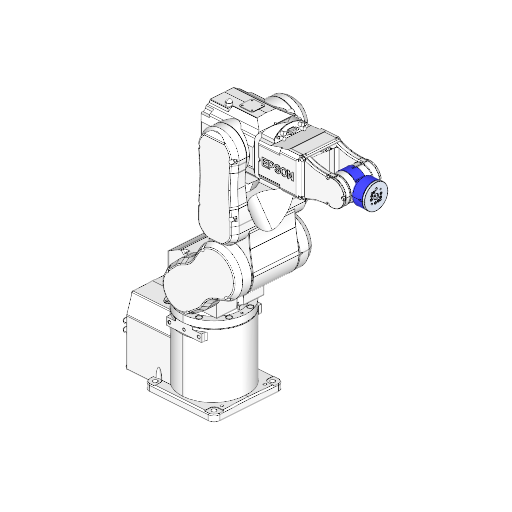

Industrial Robot EPSON C4-B601S

Specifications

Type

Industrial Robot

Brand

Epson

Model

C4-B601S

Axes

6

Payload

4 kg

Reach

600 mm

Repeatability

0.02 mm

Weight

27 kg

Speed at rated payload

360 deg/s

IP rating

IP20

Operating temperature range

5 to 40 °C

Mounting orientation

Tabletop, Ceiling, Floor, Wall, Sunken mounting

Controller

RC700-E

Power supply

AC 200-240V single phase, 50/60Hz

Power consumption

1.7 kVA

Tool flange

ø60 H7 through-hole and 4-Ø11 mounting holes

Certifications

CE, UKCA, KC/KCs, NRTL, TÜV certified to ISO 10218-1, UL 1740, CSA Z434, ISO 13849

Cleanroom class

ISO Class 3 / Clean & ESD model

Safety functions

Speed/position monitoring (SafeSense), low-power mode, dynamic braking, overload/torque/speed/position deviation detection, CPU/memory/fan/relay error detection, overheat detection

Communication interfaces

Ethernet, RS-232C, Fieldbus (EtherNet/IP, EtherCAT, PROFINET, PROFIBUS, CC-Link, DeviceNet), User I/O via D-Sub 9-pin

Download EPSON C4-B601S digital twin

Start for free
The EPSON C4-B601S is a versatile 6-axis industrial robot designed for precision automation in various applications. With a payload capacity of 4 kg and a reach of 600 mm, this robot offers exceptional repeatability of 0.02 mm and a maximum speed of 720 degrees per second. Equipped with a range of communication interfaces and advanced safety features, the C4-B601S is suitable for cleanroom environments and can be mounted in multiple orientations, ensuring flexibility and reliability in any industrial setting.

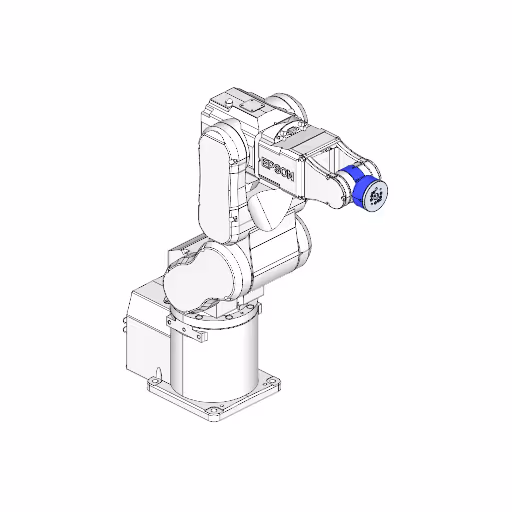

3D View

What are the technology applications of C4-B601S?

EPSON C4-B601S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C4-B601S:Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

EPSON C4-B601S applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

Frequently asked questions

Can EPSON C4-B601S be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C4-B601S or request a quote, please contact the manufacturer or an authorized local supplier.
