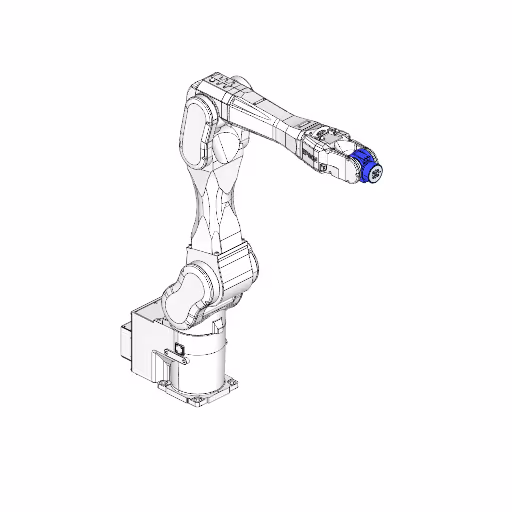

Industrial Robot EPSON C8-B1401C Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-B1401C

Axes

Payload

8 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

62 kg

Maximum speed

720 °/s (for J6 axis)

Speed at rated payload

0.52 s (cycle time at rated payload)

IP rating

IP20 (standard), IP67 (protected model)

Operating temperature

5 to 40 °C

Mounting orientation

Tabletop, Wall, Ceiling (Pedestal)

Controller

RC700-E

Power supply

AC 200-240V, single phase

Power consumption

2.5 kVA

Certifications

CE Mark; KCs Mark; TÜV-certified to ISO 10218-1 and UL1740; ANSI/RIA R15.06

Cleanroom class

ISO Class 3, ESD

Safety functions

SafeSense technology; safety-rated speed and position monitoring

Communication interfaces

Electric: 15-pin D-Sub; RJ45 Cat5e; Force sensor 6-pin; Fieldbus options including Ethernet/IP, EtherCAT, PROFINET, PROFIBUS, CC-Link, DeviceNet

The EPSON C8-B1401C is a versatile 6-axis industrial robot designed for precision automation tasks with a payload capacity of 8 kg and an impressive reach of 1400 mm. This robust robot offers high repeatability of 0.05 mm and operates at a maximum speed of 720 °/s for enhanced efficiency in demanding environments. Ideal for integration in cleanroom applications with ISO Class 3 certification, it supports various mounting options and is equipped with advanced safety functions, making it a reliable choice for diverse industrial automation needs.

3D View

What are the technology applications of C8-B1401C?

EPSON C8-B1401C is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-B1401C: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EPSON C8-B1401C applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C8-B1401C or request a quote, please contact the manufacturer or an authorized local supplier.
