EPSON C8-B901P

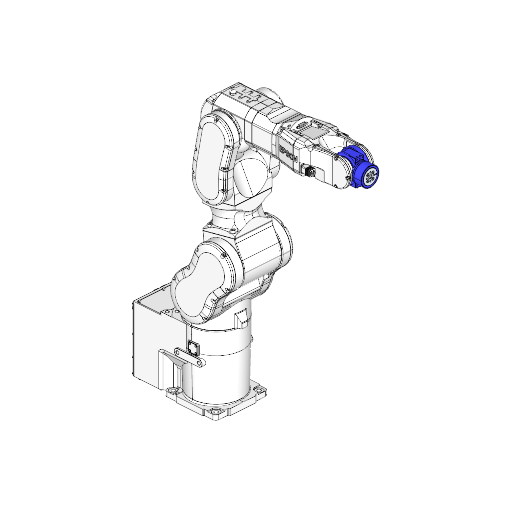

Industrial Robot EPSON C8-B901P

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-B901P

Axes

6

Payload

8 kg

Reach

901 mm

Repeatability

0.03 mm

Weight

53 kg

Speed at rated payload

0.35 s cycle time

IP rating

IP67

Operating temperature range

5 to 40 °C

Mounting orientation

Tabletop, Wall, Ceiling

Controller

RC700E

Power supply

AC 200-240 V, single phase

Power consumption

2.5 kVA

Certifications

TUV-certified to ISO 10218-1, UL1740, CSA Z434, EN 60204-1, EMC: EN 55011, RoHS, CE

Cleanroom class

ISO 3 / ESD

Safety functions

SafeSense with EN/ISO 13849 safety rating, speed & position monitoring

Communication interfaces

Electric: 15-pin D-Sub, Ethernet: 8-pin RJ45 Cat5e, Force Sensor: 6-pin; Fieldbus options: Ethernet/IP, EtherCat, PROFINET, PROFIBUS, CC-Link, DeviceNet

Download EPSON C8-B901P digital twin

Start for free
The Industrial Robot EPSON C8-B901P is a high-performance automation solution featuring six axes and a payload capacity of 8 kg, designed for versatile applications in various environments. With a reach of 901 mm and a repeatability of 0.03 mm, this robust robot operates efficiently at maximum speeds of 720 °/s, offering a cycle time of just 0.35 seconds at its rated payload. Engineered for durability, it meets IP67 ratings for protection and operates within a temperature range of 5 to 40 °C, making it suitable for cleanroom settings up to ISO class 3, and includes advanced safety features compliant with EN/ISO 13849.
3D View

What are the technology applications of C8-B901P?

EPSON C8-B901P is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-B901P:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

EPSON C8-B901P applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can EPSON C8-B901P be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C8-B901P or request a quote, please contact the manufacturer or an authorized local supplier.
