EPSON C8-C1401S

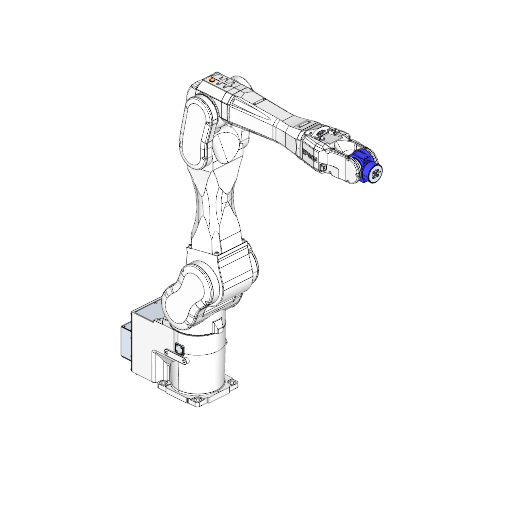

Industrial Robot EPSON C8-C1401S

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-C1401S

Axes

6

Payload

8 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

62 kg

Speed at rated payload

8858 mm/s

IP rating

IP40 standard / IP67 protected models

Operating temperature range

5 to 40 °C

Mounting orientation

Tabletop / Ceiling / Wall Mount

Controller

RC700A

Power supply

AC 200-240V, single phase

Power consumption

2.5 kVA

Certifications

CE Mark, ANSI/RIA R15.06-2012, UL 1740, NFPA 79

Cleanroom class

ISO Class 4

Safety functions

Standard safety functions per controller; electromagnetic brakes on all axes; safety zone / safe-speed options when used with Safety Function Manager

Communication interfaces

Electric user lines: 15-pin D-Sub; Ethernet RJ45 Cat5e; Pneumatic tubes Ø6 mm ×2; Fieldbus I/O options (DeviceNet, Profibus, Ethernet/IP, CC-Link), optional force sensor connection.

Download EPSON C8-C1401S digital twin

Start for free
The EPSON C8-C1401S Industrial Robot is a versatile 6-axis automation solution designed for a wide range of applications, capable of handling payloads up to 8 kg with a reach of 1400 mm. This robot offers exceptional precision with a repeatability of 0.05 mm and can operate at maximum speeds of 9679 mm/s, making it ideal for high-speed tasks in environments ranging from tabletop setups to ceiling or wall mounts. With features such as an IP40/IP67 rating for variable protection, compliance with ISO Class 4 cleanroom standards, and robust safety functions, the EPSON C8-C1401S provides reliable performance and integration options through its RC700A controller and multiple communication interfaces.
3D View

What are the technology applications of C8-C1401S?

EPSON C8-C1401S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-C1401S:Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplied or the manufacturer.
