EPSON C8-C901C

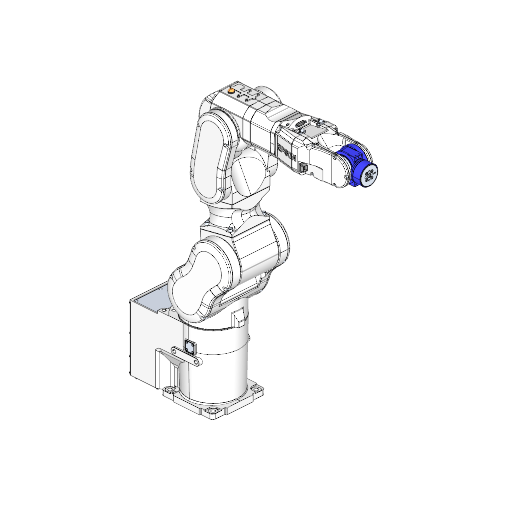

Industrial Robot EPSON C8-C901C

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-C901C

Axes

6

Payload

8 kg

Reach

901 mm

Repeatability

0.03 mm

Weight

53 kg

Speed at rated payload

8858 mm/s

IP rating

IP40 standard / IP67 optional

Operating temperature range

5 to 40 °C

Mounting orientation

Tabletop, Ceiling, Wall

Controller

RC800A

Power supply

AC 200-240 V, single phase, 50/60 Hz

Power consumption

2.5 kVA

Tool flange

Optional ISO flange (J6), hand attaches using M5 bolts

Certifications

TUV-certified to ISO 10218-1; UL 1740; CSA Z434; CE mark; ANSI/RIA R15.06; RoHS

Cleanroom class

ISO Class 3

Safety functions

Emergency stop; Dynamic brake; Fault detection (motor overload, encoder cable disconnect, speed/position overflow, temperature, fan, CPU/memory errors)

Communication interfaces

Ethernet TCP/IP; Fieldbus (EtherNet/IP, PROFINET, Profibus, CC-Link, DeviceNet); Digital I/O; Pneumatic lines; Force sensor interface

Download EPSON C8-C901C digital twin

Start for free
The EPSON C8-C901C is a versatile 6-axis industrial robot designed for precision automation in various applications. With a payload capacity of 8 kg and a maximum reach of 901 mm, this robot delivers exceptional performance with a repeatability of 0.03 mm and speeds up to 8858 mm/s at rated payload. Its robust features, including IP40 standard (optional IP67), ISO Class 3 cleanroom capability, and comprehensive safety functions, make it an ideal choice for demanding industrial environments, compatible with multiple mounting orientations and equipped with advanced communication interfaces for seamless integration.
3D View

What are the technology applications of C8-C901C?

EPSON C8-C901C is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-C901C:Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplied or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

A sleek interface displays a robotic arm shaping a surfboard model.

EPSON C8-C901C applications programmed with ENCY Robot

A robotic arm performs a pick-and-place operation with an object.

Pick-and-Place

A robotic arm polishes a circular metal surface with precision.

Polishing

Frequently asked questions

Can EPSON C8-C901C be programmed with ENCY Robot?

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C8-C901C or request a quote, please contact the manufacturer or an authorized local supplier.
