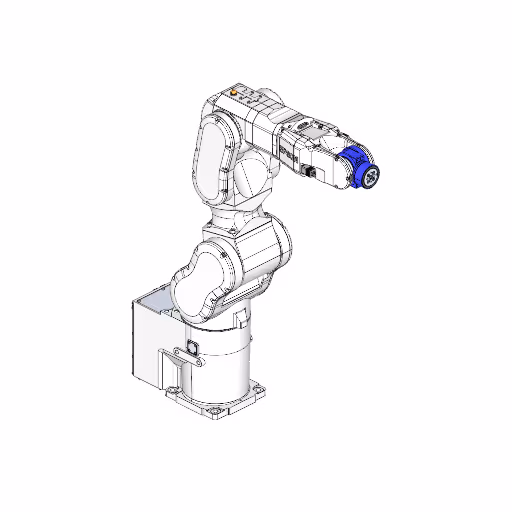

Industrial Robot EPSON C8-C901P Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-C901P

Axes

Payload

8 kg

Reach

901 mm

Repeatability

0.03 mm

Weight

52 kg

Maximum speed

2550 mm/s

Speed at rated payload

2000 mm/s

IP rating

IP67 (Protection model)

Operating temperature

5 °C to 40 °C

Mounting orientation

Tabletop, Wall, Ceiling

Controller

RC700E (or RC800A for C-C series)

Power supply

AC 200-240 V, single phase

Power consumption

2.5 kVA

Tool flange

Standard SlimLine wrist flange (wrist center / flange surface per C8 Series standard)

Certifications

ISO 10218-1, UL 1740, CSA Z434, ISO 13849, CE Mark (Machinery Directive, EMC Directive, RoHS, etc.)

Cleanroom class

ISO Class 3 (Clean/ESD models)

Safety functions

SafeSense technology: safety rated speed & position monitoring, safe zones

Communication interfaces

Fieldbus slave & master (Ethernet/IP, EtherCAT, PROFINET, PROFIBUS, CC-Link, DeviceNet), electric (D-Sub-15, RJ45 Cat5e), pneumatic lines (2×ø6 mm)

The EPSON C8-C901P is a highly versatile industrial robot featuring 6 axes and a payload capacity of 8 kg, designed for precision applications with a reach of 901 mm and a repeatability of 0.03 mm. Weighing 52 kg and capable of maximum speeds up to 2550 mm/s, this robot operates efficiently within an environment ranging from 5 °C to 40 °C, with a robust IP67 protection rating. Equipped with advanced safety features such as SafeSense technology and compliant with industry standards, the C8-C901P is suitable for various mounting orientations including tabletop, wall, and ceiling configurations, making it an ideal choice for complex automation tasks.

3D View

What are the technology applications of C8-C901P?

EPSON C8-C901P is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-C901P: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.
