Industrial Robot EPSON S5-A701S Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

S5-A701S

Axes

Payload

2 kg

Reach

786 mm

Repeatability

0.02 mm

Weight

36 kg

Maximum speed

6.56 rad/s

Speed at rated payload

4.71 rad/s

IP rating

IP54 (standard model), IP65 (Protection-model)

Mounting orientation

Table Top, Wall, Ceiling

Controller

RC180 or RC620

Power consumption

700 W

Certifications

UL1740, ANSI/RIA R15.06, CE (EN775, EN60204-1, EN55011, EN61000-6-2, EN60950)

Cleanroom class

ISO Class 3 (for Cleanroom model)

Safety functions

Safety Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), Safe Limited Position (SLP)

Communication interfaces

Ethernet TCP/IP, Fieldbus (DeviceNet, Profibus, EtherNet/IP, CC-Link)

The EPSON S5-A701S is a versatile 6-axis industrial robot designed for a range of automation applications. With a payload capacity of 2 kg and a reach of 786 mm, this robot offers high precision with a repeatability of just 0.02 mm. It is available in standard and protection models, boasting an IP rating of IP54 or IP65, making it suitable for various environments, including cleanroom applications classified as ISO Class 3.

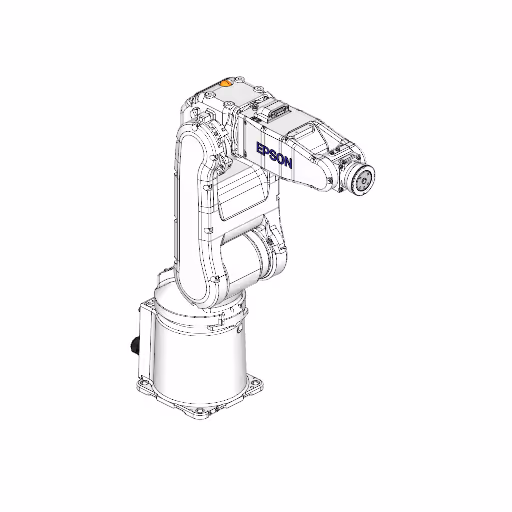

3D View

What are the technology applications of S5-A701S?

EPSON S5-A701S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON S5-A701S: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

EPSON S5-A701S applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON S5-A701S or request a quote, please contact the manufacturer or an authorized local supplier.
