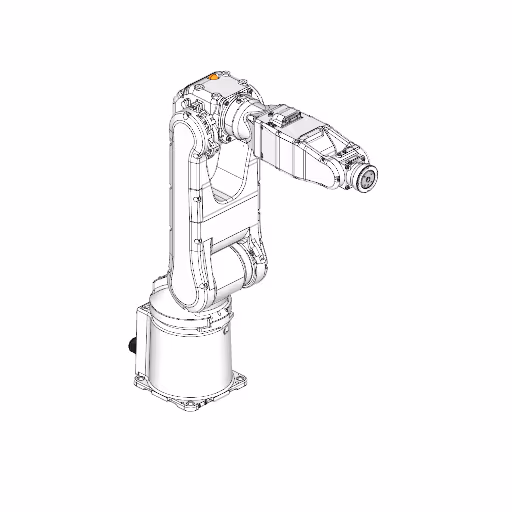

Industrial Robot EPSON S5-A901S Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

S5-A901S

Axes

Payload

5 kg

Reach

895 mm

Repeatability

0.03 mm

Weight

40 kg

Maximum speed

376 deg/s

Speed at rated payload

270 deg/s

IP rating

IP54 (Standard model) / IP65 (Protection-model)

Mounting orientation

Table Top, Wall, Ceiling

Controller

RC180, RC620

Power supply

AC 200-230V, 50/60Hz

Power consumption

1150 W

Certifications

ANSI/RIA R15.06, CE (EN775, EN60204-1, EN55011, EN61000-6-2, EN60950), UL1740

Cleanroom class

ISO Class 3

Safety functions

Emergency Stop, Electromagnetic Brake, WEIGHT and INERTIA parameter limits, UL1740 compliance

Communication interfaces

Electrical 15-wire D-Sub 15-pin connector; 2 pneumatic tubes Ø6mm; customer wiring user lines

The Industrial Robot EPSON S5-A901S is a high-performance automation solution featuring six axes and a payload capacity of 5 kg. With a reach of 895 mm and a repeatability of 0.03 mm, this robot is designed for precise operations in various industrial applications. It offers a maximum speed of 376 deg/s and operates effectively at a rated payload speed of 270 deg/s, making it an efficient choice for both standard and cleanroom environments, with an IP rating of IP54 for standard models and IP65 for protection models.

3D View

What are the technology applications of S5-A901S?

EPSON S5-A901S is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON S5-A901S: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
