EPSON VT6L-901S RevA

Industrial Robot

Epson6 axesDigital twin for ENCY Robot

About

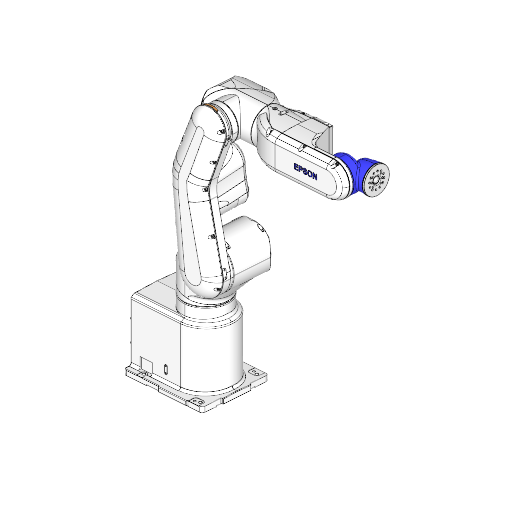

The Industrial Robot EPSON VT6L-901S RevA is a versatile 6-axis robot designed for precise automation in diverse applications. With a payload capacity of 6 kg and a reach of 920 mm, this robot offers excellent repeatability of 0.1 mm, making it ideal for tasks requiring high accuracy. It features a built-in controller, operates in a temperature range of 5 to 40 °C, and is available in an IP67 protected version, ensuring reliable performance in various industrial environments.

What are the technology applications of VT6L-901S RevA?

EPSON VT6L-901S RevA is a versatile robot suitable for a wide range of industrial applications. Primary applications of EPSON VT6L-901S RevA: Assembly, Dispensing, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.

EPSON VT6L-901S RevA applications programmed with ENCY Robot

Pick and place

Polishing

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON VT6L-901S RevA or request a quote, please contact the manufacturer or an authorized local supplier.

Download EPSON VT6L-901S RevA digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Epson
Model: VT6L-901S RevA
Axes: 6

Performance

Payload: 6 kg
Reach: 920 mm
Repeatability: 0.1 mm
Weight: 40 kg
Maximum speed: 268.7 °/s (for joint 4)

Environment

IP rating: IP20 standard, IP67 protected version available
Operating temperature: 5 to 40 °C
Mounting orientation: Tabletop, Ceiling, Wall Mount
Cleanroom class: ISO Class 4

Integration

Controller: Built-in controller (all-in-one)
Power supply: AC 100-240 V single phase
Power consumption: 1.2 kVA
Communication interfaces: Standard I/O 24 in / 16 out; Remote I/O 8 in / 8 out; Ethernet / fieldbus options (DeviceNet, Profibus, Ethernet/IP etc.)
Safety functions: Emergency Stop, Safety Door, Latch-Release; Safety circuits meeting Stop Category inputs; compliance with ANSI/RIA, NFPA79
Certifications: CE Mark, EMC Directive, Machinery Directive, RoHS Directive, ANSI/RIA R15.06-2012, NFPA79 (2007 Edition), KC Mark
