EPSON C8-C1401C

Industrial Robot

Epson6 axesDigital twin for ENCY Robot

About

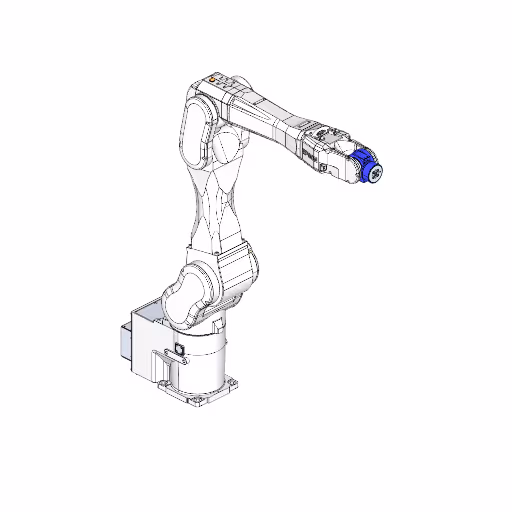

The EPSON C8-C1401C is a versatile 6-axis industrial robot designed for demanding automation tasks, capable of handling payloads up to 8 kg and reaching up to 1400 mm. With a repeatability of 0.05 mm and a maximum speed of 200 deg/s, it is ideal for precise operations in cleanroom environments classified under ISO Class 4. Featuring multiple mounting orientations and robust safety certifications, this reliable robot integrates seamlessly with various communication interfaces, ensuring efficient operation in diverse industrial settings.

What are the technology applications of C8-C1401C?

EPSON C8-C1401C is a versatile robot suitable for a wide range of industrial applications. Primary applications of EPSON C8-C1401C: Assembly, Dispensing, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

EPSON C8-C1401C applications programmed with ENCY Robot

Pick and place

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase EPSON C8-C1401C or request a quote, please contact the manufacturer or an authorized local supplier.

Download EPSON C8-C1401C digital twin

Start for free

Specifications

General

Type: Industrial Robot
Brand: Epson
Model: C8-C1401C
Axes: 6

Performance

Payload: 8 kg
Reach: 1400 mm
Repeatability: 0.05 mm
Weight: 62 kg
Maximum speed: 200 deg/s
Speed at rated payload: 0.54 sec (cycle time, 3 kg payload round‐trip arch motion)

Environment

IP rating: IP40 standard / IP67 protected model
Operating temperature: 5 to 40 °C
Mounting orientation: Tabletop, Ceiling, Wall Mount
Cleanroom class: ISO Class 4

Integration

Controller: RC700A
Power supply: AC 200-240 V, 50/60 Hz (single phase)
Power consumption: 2.5 kVA
Communication interfaces: 15-pin D-Sub (electric), 8-pin RJ45 (Ethernet), optional force sensor 6-pin, pneumatic 2×Ø6 mm; supports DeviceNet, Ethernet/IP, Profibus, CC-Link
Safety functions: Complies with CE Mark, Machinery Directive, EMC Directive, RoHS Directive, ANSI/RIA R15.06, UL 1740, NFPA 79
Certifications: CE, UL 1740, ANSI/RIA R15.06, NFPA 79
