Industrial Robot EPSON C8-C1401P Specs and Applications

Specifications

Type

Industrial Robot

Brand

Epson

Model

C8-C1401P

Axes

Payload

8 kg

Reach

1400 mm

Repeatability

0.05 mm

Weight

62 kg

Maximum speed

2000 mm/s

Speed at rated payload

0.53 s

IP rating

IP67

Operating temperature

5 to 40 °C

Mounting orientation

Tabletop, Ceiling, Wall Mount

Controller

RC800A

Power supply

AC 200-240 V, single phase, 50/60 Hz

Power consumption

2.5 kVA

Tool flange

ISO 9409-1-50-4-M6

Certifications

TÜV-certified to meet ISO 10218-1, UL 1740, CSA Z434, ISO 13849, CE Marking (EMC Directive, Machinery Directive), RoHS, NFPA 79

Cleanroom class

ISO Class 3

Safety functions

Safe-speed, Safe-zone, Safe-limited position, Slow-speed control, Emergency stop, Safety Function Manager

Communication interfaces

Ethernet (10/100/1000Base-T), USB, Standard I/O (24 in / 16 out), Fieldbus options: DeviceNet, PROFINET, PROFIBUS, Ethernet/IP

The EPSON C8-C1401P is a versatile 6-axis industrial robot designed for a wide range of automation applications. With a payload capacity of 8 kg and a reach of 1400 mm, this robot achieves a repeatability of 0.05 mm and a maximum speed of 2000 mm/s, making it ideal for precision tasks in cleanroom environments. Weighing 62 kg and featuring a robust IP67 rating, the robot can be mounted in various orientations and is powered by the RC800A controller, ensuring reliability and safety through its TÜV-certified features and multiple communication interfaces.

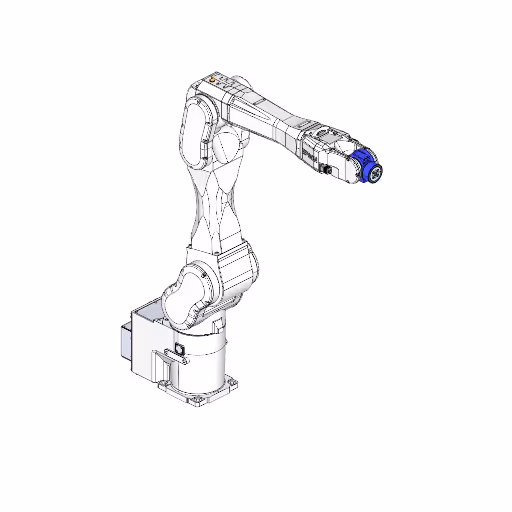

3D View

What are the technology applications of C8-C1401P?

EPSON C8-C1401P is a versatile robot suitable for a wide range of industrial applications.

Primary applications of EPSON C8-C1401P: Assembly, Dispensing, Machine Tending, Pick and place, Spraying. But we recommend to consult with your robot supplier or the manufacturer.
