Industrial Robot FANUC LR Mate 200iD-7L Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

LR Mate 200iD-7L

Axes

Payload

7 kg

Reach

911 mm

Repeatability

0.010 mm

Weight

27 kg

Maximum speed

11000 mm/s

Speed at rated payload

11000 mm/s

IP rating

IP67 (standard body & wrist; IP69K optional in some washproof/cleanroom versions)

Mounting orientation

Floor, Upside-down (Ceiling), Angle (Wall/Inclined)

Controller

R-30iB / R-30iB Mate Plus cabinet / R-30iB Plus

Power supply

AC 200-230V, 50/60Hz

Power consumption

0.5 kW

Certifications

CE, ISO 10218-1/2, UL (depending on region and options)

Cleanroom class

ISO Class 4 (in cleanroom versions; standard versions not rated cleanroom)

Safety functions

Collision detection, external emergency stop, safety interlocks, protective stops, dual-channel safety inputs

Communication interfaces

Digital I/O, Fieldbus options (EtherNet/IP, PROFINET, etc.) depending on options, TCP/IP/Ethernet

The FANUC LR Mate 200iD-7L is a versatile industrial robot designed for precise automation tasks. Featuring six axes, it offers a payload capacity of 7 kg and a reach of 911 mm, achieving a remarkable repeatability of just 0.010 mm. With a maximum speed of 11000 mm/s and an IP67 rating, this robot is suitable for various applications, whether mounted on the floor, upside down, or at an angle, making it ideal for both standard and cleanroom environments.

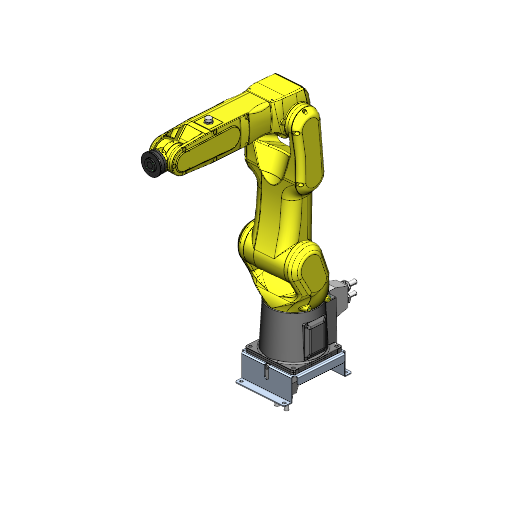

3D View

What are the technology applications of LR Mate 200iD-7L?

FANUC LR Mate 200iD-7L is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC LR Mate 200iD-7L: Assembly, Deburring, Machine Tending, Pick and place, Polishing. But we recommend to consult with your robot supplier or the manufacturer.
