Industrial Robot FANUC M-10iD-12 Specs and Applications

Specifications

Type

Industrial Robot

Brand

Fanuc

Model

M-10iD-12

Axes

Payload

12 kg

Reach

1441 mm

Repeatability

0.020 mm

Weight

145 kg

Maximum speed

720 °/s

Speed at rated payload

720 °/s

IP rating

Body: IP67 (standard), Wrist & J3 arm: IP67

Mounting orientation

Floor, Upside-Down, Angle

Controller

R-30iB Plus

Power supply

480 Volts, 3-Phase

Power consumption

1 kW (average)

Certifications

PROFINET Certified, CE, ISO 10218-1, UL

Safety functions

Dual Check Safety (DCS), Collision Guard

Communication interfaces

Ethernet/IP (Scanner, Adapter), Ethernet/IP Safety

The FANUC M-10iD-12 is an advanced industrial robot featuring six axes and a payload capacity of 12 kg, making it ideal for a variety of applications in automation. With a reach of 1441 mm and a repeatability of 0.020 mm, this robust robot supports multiple mounting orientations and operates efficiently at a maximum speed of 720 °/s. Designed for durability, it boasts an IP67 rating for both its body and wrist arm, and is powered by the R-30iB Plus controller, ensuring compatibility with diverse communication interfaces and safety functions for enhanced operational safety.

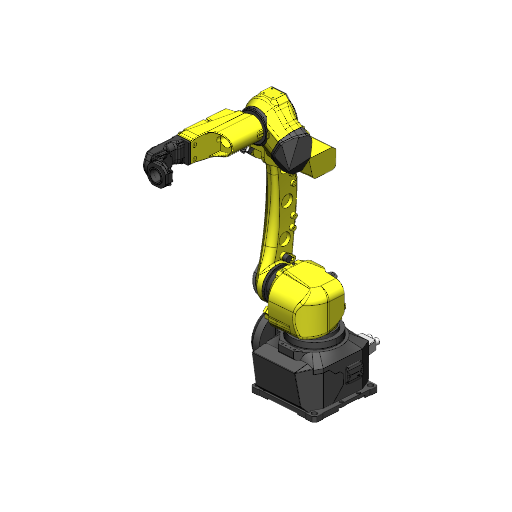

3D View

What are the technology applications of M-10iD-12?

FANUC M-10iD-12 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of FANUC M-10iD-12: Assembly, Deburring, Machine Tending, Pick and place, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

FANUC M-10iD-12 applications programmed with ENCY Robot

Pick and place

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase FANUC M-10iD-12 or request a quote, please contact the manufacturer or an authorized local supplier.
