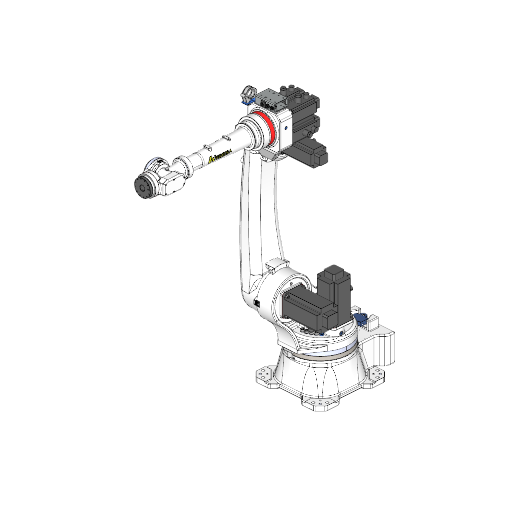

Industrial Robot HSR JR650-2400 Specs and Applications

Specifications

Type

Industrial Robot

Brand

HSR

Model

JR650-2400

Axes

Payload

50 kg

Reach

2400 mm

Repeatability

0.08 mm

Weight

747 kg

Maximum speed

197 °/s

Speed at rated payload

127 °/s

IP rating

IP54 (robot body), IP65 (wrist), control cabinet IP53

Mounting orientation

Ground installation

Power supply

3-phase AC 380V

Power consumption

6 kW

Communication interfaces

Digital I/O: ~32 inputs / ~31 outputs, NPN; reserved signal lines; air pipe; standard teach pendant cable (~8 m)

The Industrial Robot HSR JR650-2400 is a highly proficient 6-axis robotic solution designed for comprehensive automation tasks. With an impressive payload capacity of 50 kg and a reach of 2400 mm, this robot excels in precision and speed, capable of operating at a maximum speed of 197 °/s and achieving a repeatability of 0.08 mm. Built to withstand challenging industrial environments, it features an IP54-rated body, IP65-rated wrist, and an IP53-rated control cabinet, making it an ideal choice for various ground installation applications.

3D View

What are the technology applications of JR650-2400?

HSR JR650-2400 is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HSR JR650-2400: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

HSR JR650-2400 applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HSR JR650-2400 or request a quote, please contact the manufacturer or an authorized local supplier.
