Industrial Robot HYUNDAI HA006B Specs and Applications

Specifications

Type

Industrial Robot

Brand

Hyundai

Model

HA006B

Axes

Payload

6 kg

Reach

1424.9 mm

Repeatability

0.050 mm

Weight

145 kg

Maximum speed

640 °/s

Speed at rated payload

230 °/s

Mounting orientation

Floor, Wall, Ceiling

Controller

Hi6-N30 (HK), N20, Hi5a-S20, S30

The HYUNDAI HA006B is a high-performance industrial robot designed for versatility and precision in automation applications. With six axes, it offers a payload capacity of 6 kg and a reach of 1424.9 mm, ensuring flexibility for various tasks. The robot features a repeatability of 0.050 mm, operates at a maximum speed of 640 °/s, and supports multiple mounting orientations including floor, wall, and ceiling, making it suitable for diverse industrial environments when paired with controllers like the Hi6-N30 and N20.

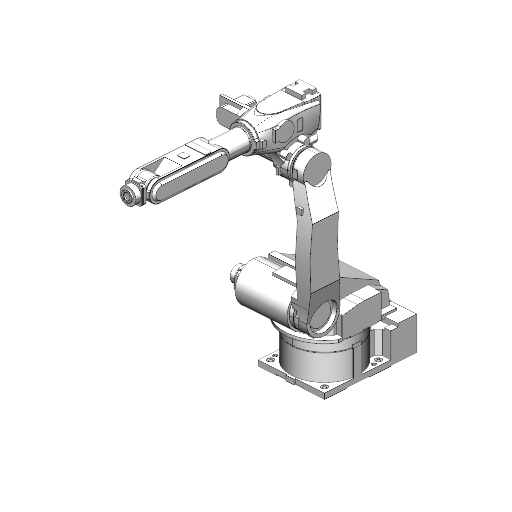

3D View

What are the technology applications of HA006B?

HYUNDAI HA006B is a versatile robot suitable for a wide range of industrial applications.

Primary applications of HYUNDAI HA006B: Deburring, Multiaxis cutting, Polishing, Robot milling, Trimming. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

HYUNDAI HA006B applications programmed with ENCY Robot

Multiaxis cutting

Polishing

Robot milling

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase HYUNDAI HA006B or request a quote, please contact the manufacturer or an authorized local supplier.
