Industrial Robot MITSUBISHI RV-13FR/20FR Specs and Applications

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-13FR/20FR

Axes

Payload

13 kg

Reach

1094 mm

Repeatability

0.05 mm

Weight

120 kg

Maximum speed

10450 mm/s

Speed at rated payload

10450 mm/s

IP rating

IP40 (standard), IP67 (oil mist environment version)

Mounting orientation

Floor type, Ceiling type, Wall-mounted type

Controller

CR800-D / CR800-R (MELFA-FR Series controller)

Power supply

Single-phase AC 230V or Three-phase AC 200-230V

Power consumption

3000 VA

Certifications

CE, UKCA

Cleanroom class

ISO Class 3

Safety functions

STO (Safe Torque Off), SS1 (Safe Stop 1), SS2 (Safe Stop 2), SOS (Safe Operation Stop), SLS (Safely-Limited Speed), SLP (Safely-Limited Position)

Communication interfaces

Profibus, Profinet, EtherCAT, Ethernet/IP, Devicenet, CC-Link, CC-Link IE, LAN, Machine I/O, Safety I/O

The Industrial Robot MITSUBISHI RV-13FR/20FR is designed for precision and versatility in industrial automation applications. With six axes, it offers a payload capacity of 13 kg and an impressive reach of 1094 mm, delivering a repeatability of 0.05 mm. Compatible with various mounting orientations, this robot operates at a maximum speed of 10450 mm/s, making it ideal for both standard and oil mist environments, and is equipped with advanced safety functions and robust communication interfaces, ensuring optimal performance in rigorous settings.

3D View

What are the technology applications of RV-13FR/20FR?

MITSUBISHI RV-13FR/20FR is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-13FR/20FR: Assembly, Dispensing, Machine Tending, Pick and place, Robot welding. But we recommend to consult with your robot supplier or the manufacturer.

What is ENCY Robot

ENCY Robot is the innovative all-in-one offline robot programming solution, speeds up complex and creative robotics tasks by multiples.

Learn more about ENCY Robot ➜

MITSUBISHI RV-13FR/20FR applications programmed with ENCY Robot

Pick and place

Robot welding

Frequently asked questions

Yes. ENCY Robot is an equipment agnostic CAD/CAM/OLP platform which supports any known robot brand. You can use components from the equipment library or create your own with our zero-code digital twin creator software MachineMaker.

Just download a fully functional trial version of ENCY Robot at the download center and start using it. You can learn how to use ENCY Robot in online training center.

Absolutely. Simply download a 30-day fully functional trial version of ENCY Robot at the download center.

If you would like to purchase ENCY, please contact us for a quote.

No. We do not sell robots and do not provide pricing information. To purchase MITSUBISHI RV-13FR/20FR or request a quote, please contact the manufacturer or an authorized local supplier.

Other Industrial Robot by Mitsubishi

MITSUBISHI RV-13F/20F

Details

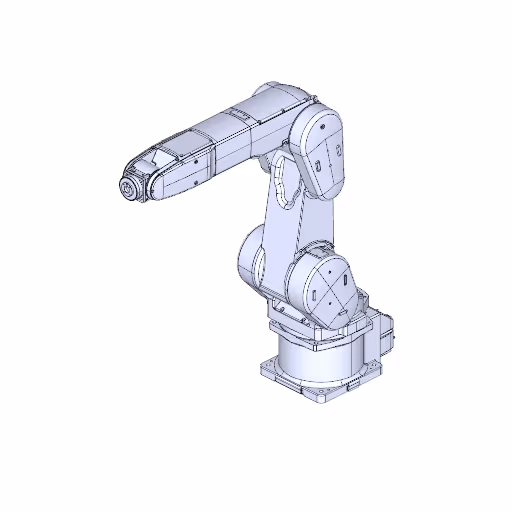

MITSUBISHI RV-13FRL
