Industrial Robot MITSUBISHI RV-2FL Specs and Applications

Specifications

Type

Industrial Robot

Brand

Mitsubishi

Model

RV-2FL

Axes

Payload

2 kg

Reach

649 mm

Repeatability

0.02 mm

Weight

21 kg

Maximum speed

4200 mm/s

Speed at rated payload

4200 mm/s

IP rating

IP30

Mounting orientation

Floor, ceiling or wall mounting possible

Controller

CR800-D / CR800-R + R16RTCPU

Power supply

1 phase 200-230 VAC

Power consumption

500 VA

Tool flange

ISO 9409-1-31.5

Certifications

Cleanroom class

ISO class-3 (optional)

Safety functions

Safely limited position (SLP), Safely limited speed (SLS), Safe operating stop, Safety IO, Safety communication function, Safety logic edit

Communication interfaces

CC-Link IE TSN (Safety), Ethernet, I/O (safety I/O), field bus expansion cards

The Industrial Robot MITSUBISHI RV-2FL is a versatile 6-axis robot, capable of handling payloads up to 2 kg with a reach of 649 mm. Designed for efficiency, it boasts a maximum speed of 4200 mm/s while remaining highly precise with a repeatability of 0.02 mm. With options for various mounting orientations and safety features, this robot is ideal for a range of automation tasks in various industrial environments.

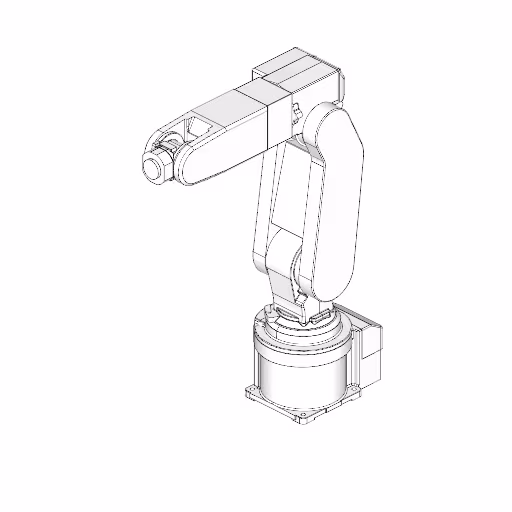

3D View

What are the technology applications of RV-2FL?

MITSUBISHI RV-2FL is a versatile robot suitable for a wide range of industrial applications.

Primary applications of MITSUBISHI RV-2FL: Assembly, Deburring, Dispensing, Machine Tending, Pick and place. But we recommend to consult with your robot supplier or the manufacturer.
